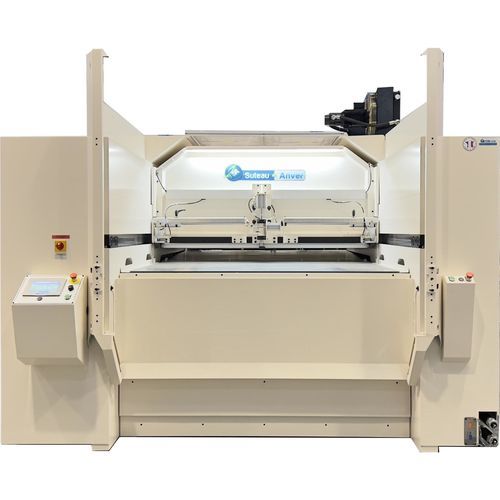

Hydraulic press XPM

motorizedelectroniccutting

Overview
The SUTEAU-ANVER SA XPM hydraulic receding-head die-cutting press is engineered for precise, quiet and high-production cutting of non-metallic flexible and semi-rigid materials. It combines a motor-driven horizontal moving beam with a vertically rising table actuated by 2 or 4 hydraulic cylinders, and a patented oil-injection system that feeds the table cylinders via a main cylinder with check valves. Beam return distance is adjustable from the touch-screen in 100 mm increments. Front EC-certified light curtain and rear guards provide operator safety. Made in France.

Applications / Fields of application

• Synthetics
• Textiles
• Leather
• Gaskets
• Foam materials
• Plastics
• Carpet
• Felt
• Rubber
• Other flexible and semi-rigid materials

Key functional features

• Receding-head (receding beam) layout clears the cutting area for die placement and removal of cut pieces
• Beam can carry the die or counterpunches can be mounted on beam or table
• Table pressure by 2 or 4 hydraulic cylinders ensures balanced, parallel pressure
• Patented oil injection system with main cylinder and check valves to table cylinders
• Touch-sensitive multi-language operator interface; beam return increments adjustable in 100 mm steps
• EC-certified front cell barrier and rear guards for safety
• High cycle rate: up to 10 cuts per minute
• Manufactured in France

Options (selectable)

• Material feeding systems
• Unwinders / roll stands
• Mechanical position stops (for 2- and 4-cylinder machines)
• Pressure-hold system for thermocompression
• Servo motor on the beam for front accuracy ±0.2 mm
• Block/die rotation systems under beam or on table
• Cutting on rectified tempered steel plate (with mechanical posi-stops)
• Heating plates
• Dimmable lighting
• Die-holder above the beam
• Die-holder under the beam
• Machine without front cover
• Remote control/telemaintenance module
• Designer (custom) version
• Custom painting on request

Available versions (examples)

• Range 2 cylinders (examples): 1600 x 800 – 80T & 100T; 1600 x 900 – 80T & 100T; 2000 x 800 – 80T & 100T; 2000 x 900 – 80T & 100T; 2400 x 800 – 80T & 100T; 2400 x 900 – 80T & 100T
• Range 4 cylinders (examples): 1600 x 900 – 130T/150T/200T/250T/300T; 1600 x 1200 – 130T/150T/200T/250T/300T; 1600 x 1500 – 130T/150T/200T/250T/300T; 2000 x 900 – 130T/150T/200T/250T/300T; 2000 x 1200 – 130T/150T/200T/250T/300T; 2000 x 1500; 2000 x 2000; 2000 x 2500; 2400 x 900; 2400 x 1200; 2400 x 1500 (powers as above)

Technical features
Useful cutting power: from 80 to 500 Tons
Beam speed (forward and back): 52 m/min
Beam stop accuracy: +/-5 mm
Adjustable stroke: 20 to 120 mm (220 mm option)
Cutting speed: 22 mm/s (fixed)
Daylight between table and beam (without die and block): 40 to 160 mm (250 mm option)
Work surface height: 940 mm

Technical specifications

• Manufacturer / Brand: SUTEAU-ANVER
• Model: SA XPM
• Type: Hydraulic receding-head die-cutting press
• Cutting power: 80–500 Tons (depending on version)
• Beam speed (forward/back): 52 m/min
• Beam stop accuracy: +/- 5 mm
• Stroke adjustable: 20–120 mm (220 mm option)
• Cutting speed: 22 mm/s (fixed)
• Daylight (table/beam): 40–160 mm (250 mm option)
• Work surface height: 940 mm
• Table actuation: 2 or 4 hydraulic cylinders, balanced pressure
• Patented oil injection system (main cylinder with check valves to table cylinders)
• Beam return adjustable via touch-screen in 100 mm increments
• Production rate: up to 10 cuts per minute
• Safety: EC-certified front light curtain and rear guards
• Machine construction: welded mechanical structure
• Material width capacity: up to 3000 mm (soft materials, single or multi-thickness)
