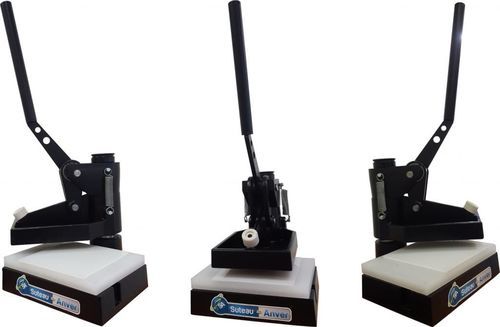

Manual press SA EASY CUT

cuttingrubberleather

Product overview
SUTEAU-ANVER's SA EASY CUT manual die-cutting press is a compact, hand-operated solution for high-precision cutting of flexible materials in small series, samples and prototyping. The machine is designed to process single or multiple layers up to 10 mm thickness and provides a controlled manual cutting force up to 5 tons.

Fields of application

• Synthetics
• Textiles
• Leather
• Gaskets
• Foam materials
• Plastics
• Carpet
• Felt
• Rubber
• Paper
• Etc.

Operation / Performance
The cutting head is mounted on a cylinder at the rear of the frame. The long hand lever allows the operator to develop a maximum manual cutting force of up to 5 tons. Built in solid steel construction, the SA EASY CUT offers consistent pressure and low maintenance, optimized for precision in low-volume production.

Key features

• Manual operation for precise control—suitable for samples and small-batch production
• Versatile compatibility with leather, felt, textiles, foam, plastics, gaskets, carpet and more
• Maximum cutting force: 5 tons; suited for materials up to 10 mm thick
• Compact footprint: 305 x 356 x 380 mm (without handle)
• User-friendly adjustment with precise top adjustment knob and adjustable tool height
• Low maintenance, solid steel construction

Technical specifications

• Operation: Manual
• Max cutting force: 5 tons
• Machine dimensions (without handle): 305 x 356 x 380 mm
• Cutting bed size: 300 x 225 mm
• Cutting head size: 200 x 215 mm
• Max material thickness: 10 mm
• Weight: 45 kg
• Handle length: 812 mm
• Tool height: adjustable from 19 mm to 40 mm
• Precise cut adjustment via manual top knob
