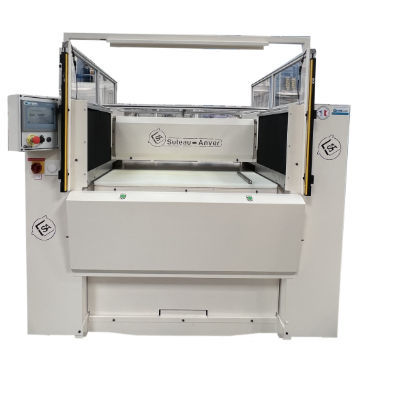

Electric press SA PTMV E

cuttingrubberfor composite materials

Overview
The SUTEAU-ANVER press is designed for cutting non-metallic materials. It is a 100% electric cutting press providing lower noise, improved precision and energy savings up to 75%.

Key functional features

• A receding beam advances and retracts with each cut, freeing the entire cutting area for tool placement and removal of cut parts.
• Optionally the tool can be positioned under the bridge so the operator retrieves only the cut parts.
• Bridge recoil is adjustable from the touchscreen in 100 mm increments (configurable).
• The table rises vertically toward the bridge when the bridge is in the forward position.
• Cutting counterparts can be mounted on the bridge and on the rising table.

User interface and benefits

• Intuitive touchscreen interface for simplified programming and operation.
• Benefits: energy savings, ease of use, high productivity, minimal maintenance and safety.

Options

• Feeding system (on request)
• Tool clamping devices (on request)
• Pad shifter / rotating block (on request)

Technical features (table)
Power supply: 400 V three-phase + neutral + earth, 50 Hz
Beam speed (forward/retract): 56 m/min
Beam stop accuracy: ±2 mm
Closing speed: 48 mm/s adjustable
Opening speed: 48 mm/s adjustable
Adjustable stroke: 20–65 mm
Daylight between table and beam (without tools or cutting boards): 110 mm
Worktop height: 940 mm

Available versions

• 1000 x 600 mm — 35 and 70 tons
• 1600 x 600 mm — 35 and 70 tons
• 2000 x 800 mm — 35 and 70 tons
• 2000 x 900 mm — 35 and 70 tons

Technical specifications

• Electrical supply: 400 V three-phase + neutral + earth, 50 Hz
• Beam speed (forward/retract): 56 m/min
• Beam stop accuracy: ±2 mm
• Closing speed: 48 mm/s adjustable
• Opening speed: 48 mm/s adjustable
• Stroke: 20–65 mm adjustable
• Daylight table/beam without tool: 110 mm
• Worktop height: 940 mm
• Bridge recoil adjustable from touchscreen in 100 mm increments (configurable)
