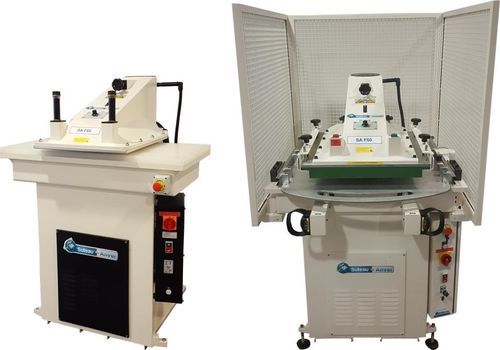

Hydraulic press SA F60

motorizedmanually-controlledfine-blanking

Overview
This standard swing-arm press is part of SUTEAU-ANVER’s range of cutting presses. With a compact, sturdy design it is intended for cutting soft materials in single or multiple thicknesses. Easy to operate, the machine suits production workshops, sample making and R&D tasks.

Fields of application

• Paper
• Textiles
• Leather
• Gaskets
• Foam materials
• Plastics
• Carpet
• Wood
• Felt
• Rubber
• Other soft materials

Models summary

• SA F35
• SA F60

General benefits
Versatile clicker presses designed for industrial production and sample/R&D cutting. Compact footprint and robust construction make them suitable across sectors including automotive, aerospace and furniture manufacturing.

Technical features (as listed)
SA F35

• Maximum cutting power: 12 tons
• Daylight: 125 mm
• Arm stroke: 70 mm
• Cutting area: 330 x 300 mm
• Table with block dimensions: 600 x 300 mm

SA F60

• Maximum cutting power: 27 tons
• Daylight: 130 mm
• Arm stroke: 85 mm
• Cutting area: 500 x 500 mm
• Table with block dimensions: 1000 x 500 mm

Options

• Arm blocker (locks arm after power-off)
• External safety guards
• Block/tool clamping under the arm
• Infeed/introduction table
• Height-adjustable feet for pallet truck handling
• Cutting meter with reset button
• Variable frequency drive for 220 V single-phase supply (supply and installation)
• Nylon pad option instead of polypropylene pad

Available versions
Available in EC standard and non-EC standard, and in single-phase or three-phase power supply.

Machine dimensions (listed)
SA F35

• Height: 1370 mm
• Width: 750 mm
• Depth: 810 mm
• Net weight: 450 kg

SA F60

• Height: 1370 mm
• Width: 1000 mm
• Depth: 1000 mm
• Net weight: 840 kg

Technical specifications

• Models: SA F35 and SA F60
• SA F35 — Maximum cutting power: 12 tons; Daylight 125 mm; Arm stroke 70 mm; Cutting area 330 x 300 mm; Table dimensions with block 600 x 300 mm; Machine HxWxD 1370 x 750 x 810 mm; Net weight 450 kg
• SA F60 — Maximum cutting power: 27 tons; Daylight 130 mm; Arm stroke 85 mm; Cutting area 500 x 500 mm; Table dimensions with block 1000 x 500 mm; Machine HxWxD 1370 x 1000 x 1000 mm; Net weight 840 kg
• Protections and accessories: arm blocker, external safety guards, tool clamping under the arm, introduction table, height-adjustable feet, cutting meter with reset, optional VFD for 220 V single-phase, nylon pad option
• Versions: EC standard or non-EC standard; single-phase or three-phase power supply
