Electric press E21G series

die-cuttingfor plasticsrubber

Product overview

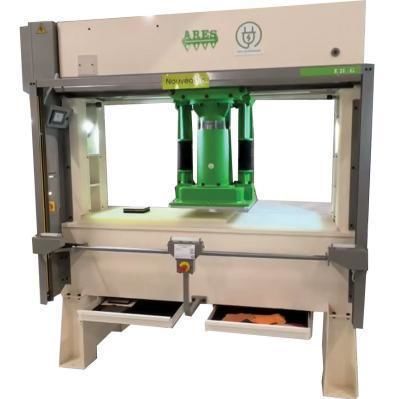

The E21G by SUTEAU-ANVER is a 100% electric traveling-head die-cutting press designed for cutting flexible materials in single or multiple layers, from sheets or rolls, with a maximum working width of 2000 mm. Material can be fed from the front or rear via a double roller feed system. The work area is fully enclosed and accessible from the front for material handling and maintenance.

Key features

• High-speed electric die-cutting suitable for continuous production.
• Electrical cutting press delivering consistent cutting force across material types.
• Suitable for leather, foam, synthetics, textiles, gaskets, plastics, carpet, felt, rubber and other flexible materials.
• Semi-automatic operation combining automated cycles and operator control.
• Traveling-head design to optimise material usage and cutting accuracy.
• Multilingual touch-screen interface for parameter adjustment.
• Low maintenance design to reduce downtime.

Applications
Suitable for leather goods, packaging, advertising/POS, footwear, bedding/furniture, automotive, aeronautics, composites, carpet, foam and other flexible material products.

Advantages for industries

• Versatile across multiple production sectors and product types.
• Customisable feeding systems and start/stop pedal options to fit production lines.
• Professional-grade cutting capacity with configurable options.

Technical features (summary)

• Cutting power: 25 to 30 tons depending on model.
• Machine supplied with a cutting block.
• Cutting head dimensions: from 530 × 530 mm to 750 × 750 mm.
• Stroke adjustable from 10 to 150 mm.
• Automatic cutting-point control and programmable time lag for movement sequencing.
• Parameters adjustable via touchscreen interface.
• Safety: cell barrier protection and fully enclosed working area accessible from front.
• Feeding: double roller feed system allowing front or back feeding.
• Operation mode: semi-automatic.
• Material compatibility: synthetics, textiles, leather, gaskets, foam, plastics, carpet, felt, rubber, etc.

Available versions / Models (examples)
Model | Power | Cutting table | Cutting plate
E21G-1 | 25 T | 1700 x 530 mm | 530 x 530 mm
E21G-2 | 25 T | 2000 x 530 mm | 530 x 530 mm
E21G-3 | 30 T | 2000 x 750 mm | 500 x 700 mm
E21G-4 | 30 T | 2000 x 750 mm | 700 x 700 mm
E21G-5 | 30 T | 2000 x 750 mm | 500 x 750 mm
E21G-6 | 30 T | 2000 x 750 mm | 750 x 750 mm
E21G-7 | 30 T | 2000 x 530 mm | 530 x 530 mm

Options (not exhaustive)

• Material feeding systems (various configurations).
• Material unwinders.
• Start/stop pedal.
• Dimmable lighting.
• Soundproofing enclosures.
• RAL paint colours.
