Hydraulic press SA 12 series

cuttingdie-cuttingrubber

Product overview

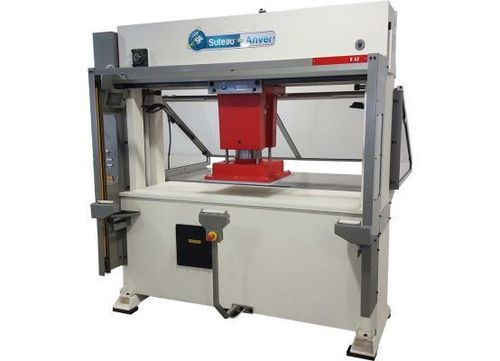

SUTEAU-ANVER SA 12 is a traveling-head hydraulic die-cutting press engineered for precision, reliability and high-volume cutting of flexible materials in single or multiple layers, supplied in sheets or rolls up to 2500 mm wide. Material can be fed from the front or the rear (for example via double-roller feeding). The working area is fully guarded with frontal access for close material handling. The SA 12 is a multi-purpose model designed for productivity, efficiency, low maintenance and maximum safety.

Fields of application

• Synthetics
• Textiles
• Leather
• Gaskets
• Foam materials
• Plastics
• Carpet
• Felt
• Rubber
• Etc.

Key Features

• High-speed die-cutting: rapid production rates without sacrificing accuracy
• Hydraulic cutting press: consistent cutting force for a wide range of materials
• Suitable for leather and foam cutting
• Semi-automatic operation: balances automation and operator control
• Traveling-head design: improves material utilization and cutting precision for small and large runs
• Die-cutting capability for fabrics, foam, leather and synthetics
• User-friendly interface: parameters adjustable via touch screen, multilingual controls
• Low maintenance requirements

Advantages for industries

• Versatility across sectors such as leather goods, packaging and advertising
• Customizable options (feeding systems, foot pedal controls, etc.) to meet production needs
• Professional-grade equipment suited to diverse die-cutting applications

Options

• Material feeding systems
• Material unwinders
• Start pedal
• Dimmable lighting
• Soundproofing
• RAL paint colours

Available versions / Models (summary table)
SA 12 – 1 – CE | 25 T | 1700 x 530 mm | 530 x 530 mm
SA 12 – 2 – CE | 25 T | 2000 x 530 mm | 530 x 530 mm
SA 12 – 3 – CE | 32 T | 2000 x 660 mm | 500 x 660 mm
SA 12 – 4 – CE | 32 T | 2000 x 660 mm | 660 x 660 mm
SA 12 – 5 – CE | 32 T | 2000 x 750 mm | 500 x 750 mm
SA 12 – 6 – CE | 32 T | 2000 x 750 mm | 750 x 750 mm
SA 12 – 7 – CE | 32 T | 2000 x 530 mm | 530 x 530 mm
SA 12 – 8 – CE | 32 T | 2000 x 800 mm | 800 x 800 mm
SA 12 – 9 – CE | 32 T | 2500 x 750 mm | 750 x 750 mm
SA 12 – 10 – CE | 32 T | 2500 x 800 mm | 800 x 800 mm

Technical specifications

• Cutting power: 25 T to 40 T (options)
• Machine supplied with a cutting block
• Cutting head dimensions: from 530 × 530 mm to 800 × 800 mm
• Stroke adjustable from 10 to 150 mm
• Automatic cutting-point control regardless of die height or end-of-stroke switch
• Time lag for movement delay
• Parameters adjustable via touch screen
• Safety light curtain (cell barriers)
• Available in CE or non-CE versions and three-phase electrical options
• Electric version available (separate electric press model)
• 10 model variants covering different table sizes and plate dimensions (see table above)
