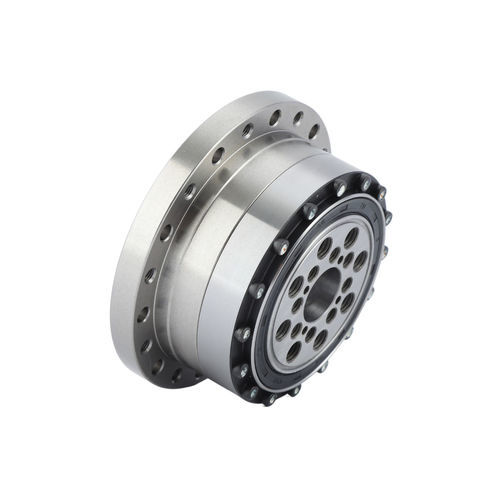

Strain wave gear reducer FCG series

coaxialkeyed shaft1000 - 5000 Nm

Introduction
The FCG-AJ series strain wave gear is designed for high-torque and heavy-load industrial applications. It uses a cup-style flexspline and an integrated cam wave generator; the cam shaft bore can be customized to fit specific motor models. The input shaft connects directly to the wave generator inner bore via a keyway. The series is typically configured with a fixed circular spline at one end and an output flexspline at the other end.

Features

• High torque capacity and improved load-bearing performance
• Integrated cam wave generator simplifies installation and supports multiple mounting options
• High rotational accuracy and repeatable positioning
• Coaxial input/output alignment for compact system integration
• Suitable for machinery requiring specialized torque and heavy-load handling

Specification
Model | Reduction ratio | Rated torque at input 2000 r/min (Nm) | Peak torque at start/stop (Nm) | Permissible max. value of ave. load torque (Nm) | Instantaneous permissible max. torque (Nm) | Permissible max. input rotational speed (r/min) | Permissible ave. input rotational speed (r/min) | Backlash (arcsec) | Weight (kg)
FCG-45-50-AJ | 50 | 229 | 650 | 345 | 1235 | 3800 | 3000 | 12 | 7
FCG-45-80-AJ | 80 | 407 | 918 | 507 | 1651 | 3800 | 3000 | 8 | 7
FCG-45-100-AJ | 100 | 457 | 982 | 650 | 2041 | 3800 | 3000 | 6 | 7
FCG-45-120-AJ | 120 | 523 | 1070 | 806 | 2288 | 3800 | 3000 | 5 | 7
FCG-45-160-AJ | 160 | 523 | 1147 | 819 | 2483 | 3800 | 3000 | 4 | 7
FCG-50-80-AJ | 80 | 484 | 1223 | 675 | 2418 | 3500 | 2500 | 8 | 9
FCG-50-100-AJ | 100 | 611 | 1274 | 866 | 2678 | 3500 | 2500 | 6 | 9
FCG-50-120-AJ | 120 | 688 | 1404 | 1057 | 2678 | 3500 | 2500 | 5 | 9
FCG-50-160-AJ | 160 | 688 | 1534 | 1096 | 3185 | 3500 | 2500 | 4 | 8.9
FCG-58-80-AJ | 80 | 714 | 1924 | 1001 | 3185 | 3000 | 2200 | 6 | 14.6
FCG-58-100-AJ | 100 | 905 | 2067 | 1378 | 4134 | 3000 | 2200 | 5 | 14.6
FCG-58-120-AJ | 120 | 969 | 2236 | 1547 | 4329 | 3000 | 2200 | 4 | 14.6
FCG-58-160-AJ | 160 | 969 | 2392 | 1573 | 4459 | 3000 | 2200 | 3 | 14.6
FCG-65-80-AJ | 80 | 979 | 2770 | 1366 | 4884 | 2800 | 1900 | 6 | 20.9
FCG-65-100-AJ | 100 | 1248 | 3020 | 1996 | 6237 | 2800 | 1900 | 5 | 20.9
FCG-65-120-AJ | 120 | 1248 | 3296 | 2061 | 6237 | 2800 | 1900 | 4 | 20.9
FCG-65-160-AJ | 160 | 1248 | 3453 | 2061 | 6237 | 2800 | 1900 | 3 | 20.9

Characteristics / Technical specifications

• Series: FCG-AJ
• Flexspline: cup-style flexspline
• Wave generator: integrated cam wave generator; cam shaft bore customizable
• Input connection: direct keyway interface between input shaft and wave generator inner bore
• Typical configuration: fixed circular spline (input) and output flexspline
• Alignment: coaxial input/output
• Use cases: heavy machinery, rotary platforms, robotic joints and other industrial applications requiring high torque and load capacity
• Backlash range: 3–12 arcsec depending on model
• Weight range: 7–20.9 kg depending on model
