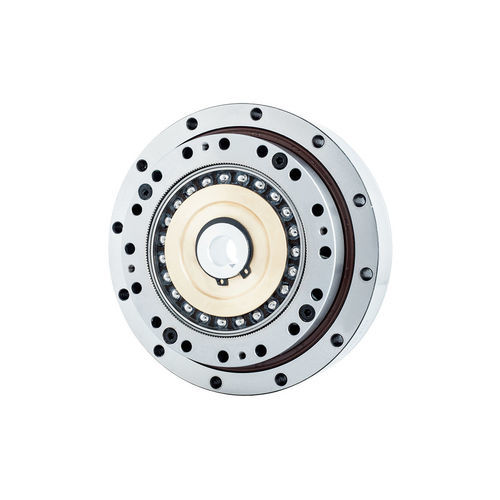

Strain wave gear reducer FHG-III-40

coaxial100 - 200 Nm20 - 50 Nm

Introduction
The FHG-II series strain wave drive features a cross roller bearing coupling structure for its wave generator, allowing for automatic fine-tuning of coaxiality. The size of the cam shaft hole can be adjusted according to the customer's motor model, with the input shaft directly fitting into the inner bore of the wave generator and connected via a flat key. It incorporates a built-in high-rigidity cross roller bearing (main bearing). Generally, it is used with the rigid wheel end fixed and the flexspline end output, or with the flexspline fixed and the rigid wheel end output as the connection method.

Features

• The wave generator with a cross roller bearing coupling structure is easier to install.
• Excellent rotational accuracy and positioning accuracy.
• High torque capacity.
• High rigidity.
• Input and output are coaxial.

Specification - Starting torque of FHG series (unit:cNm)
Type / Reduction ratio | 11 | 14 | 17 | 20 | 25 | 32 | 40
50 | 一 | 8.8 | 27 | 36 | 56 | 85 | 136
80 | 一 | 7.5 | 25 | 33 | 50 | 74 | 117
100 | 一 | 6.9 | 24 | 32 | 49 | 72 | 112
120 | 一 | 6.9 | 24 | 31 | 48 | 68 | 110
160 | 一 | 一 | 一 | 一 | 31 | 47 | 67 | 105

Specification - Moment load table of FHT(FHG) series
Model | Design value (Mbdi / Ft di / Fa di as applicable) | Instant permissible value (Mb max / Ft max / Fa max as applicable)
FHG-14 | Mbdi 41Nm; Ftdi 270N; Fa di 270N | Mb max 80Nm; Ft max 490N; Fa max 490N
FHG-17 | Mbdi 72Nm; Ftdi 400N; Fa di 400N | Mb max 140Nm; Ft max 700N; Fa max 700N
FHG-20 | Mbdi 140Nm; Ftdi 650N; Fa di 650N | Mb max 280Nm; Ft max 1150N; Fa max 1150N
FHG-25 | Mbdi 243Nm; Ftdi 900N; Fa di 900N | Mb max 480Nm; Ft max 1600N; Fa max 1600N
FHG-32 | Mbdi 460Nm; Ftdi 1350N; Fa di 1350N | Mb max 900Nm; Ft max 2300N; Fa max 2300N
FHG-40 | Mbdi 600Nm; Ftdi 2000N; Fa di 2000N | Mb max 1200Nm; Ft max 3500N; Fa max 3500N

Specification - Rated torque / Permissible / Speed / Backlash / Weight / Design life (selected excerpt)
Columns: Model | Reduction ratio | Rated torque at 2000 r/min input (Nm / kgfm) | Permissible peak torque at start and stop (Nm / kgfm) | Permissible maximum value for average load torque (Nm / kgfm) | Permissible maximum input rotational speed (Grease) (r/min) | Backlash (Arc Sec) | weight (kg) | Design life (Hour)
Model 14 (reduction 50) | Rated torque: 7 Nm (0.7 kgfm) | Peak start/stop: 23 Nm (2.3 kgfm) | Permissible average: 9 Nm (0.9 kgfm) | Permissible max input speed: 8500 r/min | Backlash: ≤20 Arc Sec | weight (FHG-I/II: 0.40; FHG-III:0.7; FHG-IV:0.66; FHG-V:0.40) | Design life: 10000 Hour
Model 14 (80) | Rated torque: 10 Nm (1.0 kgfm) | Peak: 30 Nm (3.1 kgfm) | Permissible average: 14 Nm (1.4 kgfm) | Permissible max input speed: 15000 r/min
Model 17 (50) | Rated torque: 21 Nm (2.1 kgfm) | Peak: 44 Nm (4.5 kgfm) | Permissible average: 34 Nm (3.4 kgfm) | Permissible max input speed: 7300 r/min | Backlash: ≤20 Arc Sec | weight & design life data: see rows below
(Full table contains detailed rows for models 14, 17, 20, 25, 32, 40 across reduction ratios 50/80/100/120/160 with rated torques, permissible peak torques, permissible average load torques, permissible max input speeds (values like 8500/10000/15000 etc.), backlash ≤20 Arc Sec, weights and design life hours; consult the specification rows above in this description for the complete numeric entries.)

Caractéristiques / spécifications techniques

• Series: FHG-II series strain wave drive.
• Wave generator: cross roller bearing coupling structure for easier installation and automatic coaxiality fine-tuning.
• Input shaft: inner bore fit with flat key; cam shaft hole size adjustable per customer motor model.
• Main bearing: built-in high-rigidity cross roller bearing.
• Connection methods: either rigid wheel fixed & flexspline output, or flexspline fixed & rigid wheel output.
• Key features: excellent rotational and positioning accuracy; high torque capacity; high rigidity; coaxial input/output.
• Starting torque data: provided per size and reduction ratio (see 'Starting torque' table lines above).
• Moment load data: model-specific Mb, Ft, Fa design and instantaneous permissible values provided for FHG-14 / 17 / 20 / 25 / 32 / 40 (see 'Moment load' table lines above).
• Performance data: rated torque, permissible peak torque, permissible average torque, permissible max input speeds, backlash (≤20 Arc Sec) and design life hours given in the detailed specification table above.
