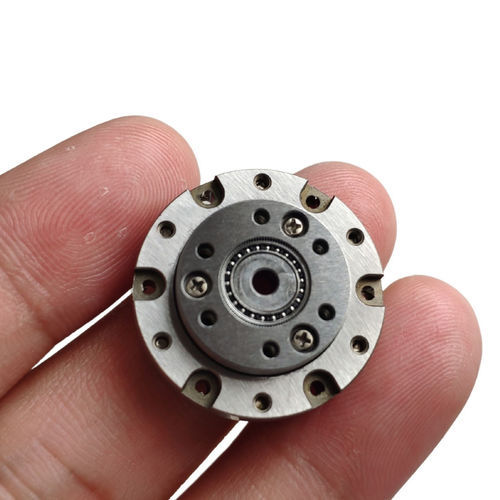

Harmonic servo-gearbox SHD-11

coaxialcompactmodular

Introduction
The SHD-mini series harmonic drive is designed for applications requiring minimal volume and weight. It features reduced axial dimensions and a top-hat style flexspline and is supplied as a pre-assembled modular unit ready for integration. The main bearing uses compact four-point contact ball bearings to directly support external radial and axial loads. Shaft bore dimensions can be customized to fit motor shaft sizes; select a compatible motor model according to your mechanical design.

Features

• Compact axial profile and low mass
• Pre-assembled modular construction for plug-and-play integration
• High rotational accuracy and positioning precision
• Coaxial input/output configuration for straightforward coupling to motors
• Main bearing supports external loads directly (four-point contact ball bearings)

Specification
Model | Gear Ratio | Rated torque at input 2000 r/min [N·m] | Permissible peak torque during starting and stopping [N·m] | Maximum allowable average load torque [N·m] | Maximum instantaneous permissible torque [N·m] | Maximum allowable input speed [r/min] | Allowable average input speed [r/min] | Gear Backlash (arcsec) | 1/4GD [kg·cm2] | Mass (kg)
SHD Series - 03 | 30 | 0.08 | 0.15 | 0.12 | 0.25 | 10000 | 6500 | ≤20 | 7.0x10-4 | 0.016
SHD Series - 03 | 50 | 0.13 | 0.24 | 0.16 | 0.5 | 10000 | 6500 | ≤20 | 7.0x10-4 | 0.016
SHD Series - 05 | 30 | 0.23 | 0.47 | 0.35 | 0.85 | 10000 | 6500 | ≤20 | 2.5x10-4 | 0.040
SHD Series - 05 | 50 | 0.38 | 0.87 | 0.5 | 1.7 | 10000 | 6500 | ≤20 | 2.5x10-4 | 0.040
SHD Series - 05 | 80 | 0.5 | 1.2 | 0.82 | 2.2 | 10000 | 6500 | ≤10 | 2.5x10-4 | 0.040
SHD Series - 08 | 30 | 0.8 | 1.6 | 1.3 | 3.2 | 8500 | 3500 | ≤20 | 3.2x10-3 | 0.061
SHD Series - 08 | 50 | 1.6 | 3.16 | 2.1 | 6.1 | 8500 | 3500 | ≤20 | 3.2x10-3 | 0.061
SHD Series - 08 | 80 | 2.1 | 4.0 | 2.9 | 7.5 | 8500 | 3500 | ≤10 | 3.2x10-3 | 0.061
SHD Series - 08 | 100 | 2.4 | 4.6 | 3.2 | 8.7 | 8500 | 3500 | ≤10 | 3.2x10-3 | 0.061
SHD Series - 11 | 30 | 2.1 | 4.1 | 3.1 | 8.2 | 8500 | 3500 | ≤20 | 1.4x10-2 | 0.127
SHD Series - 11 | 50 | 3.2 | 7.8 | 5.1 | 15 | 8500 | 3500 | ≤20 | 1.4x10-2 | 0.127
SHD Series - 11 | 80 | 4.2 | 9.5 | 7.2 | 20 | 8500 | 3500 | ≤10 | 1.4x10-2 | 0.127
SHD Series - 11 | 100 | 4.8 | 10.5 | 8.7 | 23 | 8500 | 3500 | ≤10 | 1.4x10-2 | 0.127
SHD Series - 14 | 30 | 3.8 | 8.7 | 6.2 | 15 | 8500 | 3500 | ≤20 | 3.4x10-1 | 0.312
SHD Series - 14 | 50 | 4.8 | 16 | 6.8 | 32 | 8500 | 3500 | ≤20 | 3.4x10-1 | 0.312
SHD Series - 14 | 80 | 6.4 | 22 | 9.5 | 45 | 8500 | 3500 | ≤10 | 3.4x10-1 | 0.312
SHD Series - 14 | 100 | 7.4 | 26 | 10.8 | 50 | 8500 | 3500 | ≤10 | 3.4x10-1 | 0.312

Technical characteristics

• Series: SHD / SHD-mini
• Flexspline style: top-hat
• Product form: pre-assembled modular harmonic drive units
• Main bearing type: compact four-point contact ball bearings (direct support of external loads)
• Shaft bore: customizable to match motor shaft sizes
• Configuration: coaxial input and output
• Typical maximum allowable input speeds: up to 10000 r/min for smaller sizes (03, 05); up to 8500 r/min for larger sizes (08, 11, 14)
• Typical gear backlash: ≤10–≤20 arcsec depending on model/ratio
• Mass range: approx. 0.016 kg (SHD-03) to 0.312 kg (SHD-14) depending on model
