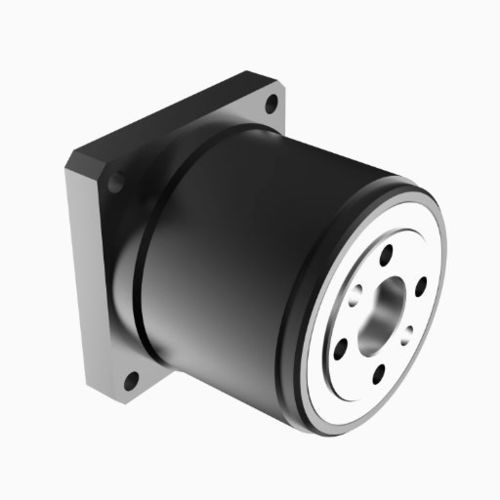

Harmonic gear reducer CSF 08

coaxial0.5 - 1 Nm1 - 5 Nm

Introduction
The CSF-mini series miniature harmonic drive is developed for applications with specialized volume and weight requirements, utilizing a cup-style flexspline. This series exclusively offers pre-assembled modular products for immediate use. The main bearing employs compact four-point contact ball bearings to directly support external loads. The CSF-mini series includes two types: the motor-mount type (2XH) and the shaft-input type (1U) that supports input forms such as belts, gears, and couplings. Select the most suitable model based on your mechanical design requirements.

Features

• Compact size and lightweight design
• Compact and streamlined structure
• Excellent rotational accuracy and positioning precision
• Coaxial input and output configuration
• Cup-style flexspline for reduced envelope
• Pre-assembled modular units for immediate integration
• Main bearing: compact four-point contact ball bearings supporting external loads
• Available types: 2XH (motor-mount) and 1U (shaft-input)

Specification (table)
Model | Gear Ratio | Rated torque at input 2000r/min [N.m] | Permissible peak torque during starting and stopping [N.m] | Maximum allowable value of average load torque [N.m] | Maximum instantaneous permissible torque [N.m] | Maximum allowable input speed [r/min] | Allowable average input speed [r/min] | Gear Backlash (arcsec) | 1/4GD [kgcm2] | Mass (kg)
CSF Series | 03 | 30 | 0.06 | 0.13 | 0.1 | 0.22 | 10000 | 6500 | ≤20 | 5.3x10-7 | 0.017
03 | 50 | 0.11 | 0.21 | 0.13 | 0.41 | ≤20
05 | 30 | 0.25 | 0.5 | 0.38 | 0.9 | 10000 | 6500 | ≤20 | 2.5x10-4 | 0.039
05 | 50 | 0.4 | 0.9 | 0.53 | 1.8 | ≤20
05 | 80 | 0.52 | 1.35 | 0.84 | 2.5 | ≤10
08 | 30 | 0.9 | 1.8 | 1.4 | 3.3 | 8500 | 3500 | ≤20 | 3.2x10-3 | 0.106
08 | 50 | 1.8 | 3.3 | 2.3 | 6.6 | ≤20
08 | 80 | 2.2 | 4.3 | 2.9 | 8 | ≤10
08 | 100 | 2.4 | 4.8 | 3.3 | 9 | ≤10
11 | 30 | 2.1 | 4.1 | 3.1 | 8.2 | 8500 | 3500 | ≤20 | 1.4x10-2 | 0.2
11 | 50 | 3.5 | 8.3 | 5.5 | 17 | ≤20
11 | 80 | 4.5 | 10.2 | 8.5 | 22 | ≤10
11 | 100 | 5 | 11 | 8.9 | 25 | ≤10

Technical characteristics / specifications

• Series: CSF-mini
• Flexspline type: cup-style
• Product: pre-assembled modular units
• Bearing: compact four-point contact ball bearings supporting external loads directly
• Available types: motor-mount (2XH) and shaft-input (1U)
• Supported input forms: belts, gears, couplings
• Coaxial input and output configuration
• Design focus: compact size, lightweight, high rotational accuracy and positioning precision
