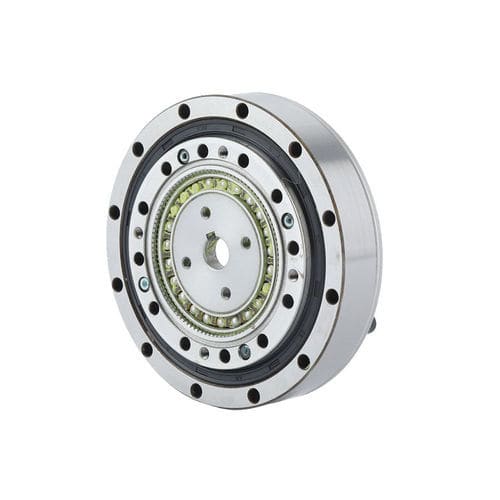

Strain wave servo-gearbox FHG-I-25

coaxialkeyed borelow-backlash

Introduction
The HONPINE FHG series (FHG‑I … FHG‑V variants) strain wave gearbox features an integrated cam structure for the wave generator. The cam‑shaft bore can be adapted to the customer's motor model; the input shaft fits directly into the wave generator inner bore and connects via a flat key. A built‑in high‑rigidity cross‑roller main bearing is provided. Typical connection methods are rigid wheel fixed with flexspline output, or flexspline fixed with rigid wheel output.

Features

• Integrated cam wave generator simplifies installation and increases mounting options.
• High rotational and positioning accuracy.
• High torque capacity across sizes.
• Elevated torsional rigidity thanks to cross‑roller main bearing.
• Coaxial input and output for compact drivetrains.

Specification - Sheet 1: Starting torque of FHG series (unit: cNm)
Type / Reduction ratio | 11 | 14 | 17 | 20 | 25 | 32 | 40
50 | — | 8.8 | 27 | 36 | 56 | 85 | 136
80 | — | 7.5 | 25 | 33 | 50 | 74 | 117
100 | — | 6.9 | 24 | 32 | 49 | 72 | 112
120 | — | 6.9 | 24 | 31 | 48 | 68 | 110
160 | — | — | — | 31 | 47 | 67 | 105

Specification - Sheet 2: Moment load table of FHT (FHG) series
Model | Design value (Mbdi / Nm) | Instant permissible value (Mb max / Nm) | Ftdi (N) | Ft max (N) | Fa di (N) | Fa max (N)
FHG-14 | Mbdi 41 Nm | Mb max 80 Nm | Ftdi 270 N | Ft max 490 N | Fa di 270 N | Fa max 490 N
FHG-17 | Mbdi 72 Nm | Mb max 140 Nm | Ftdi 400 N | Ft max 700 N | Fa di 400 N | Fa max 700 N
FHG-20 | Mbdi 140 Nm | Mb max 280 Nm | Ftdi 650 N | Ft max 1150 N | Fa di 650 N | Fa max 1150 N
FHG-25 | Mbdi 243 Nm | Mb max 480 Nm | Ftdi 900 N | Ft max 1600 N | Fa di 900 N | Fa max 1600 N
FHG-32 | Mbdi 460 Nm | Mb max 900 Nm | Ftdi 1350 N | Ft max 2300 N | Fa di 1350 N | Fa max 2300 N
FHG-40 | Mbdi 600 Nm | Mb max 1200 Nm | Ftdi 2000 N | Ft max 3500 N | Fa di 2000 N | Fa max 3500 N

Specification - Sheet 3: Moment / torque / speed / backlash / weight / design life table (selected excerpts)
Note: Tables contain per‑model and per‑ratio data: rated torque at 2000 r/min (Nm & kgfm), permissible peak torque at start/stop (Nm & kgfm), permissible average torque (Nm & kgfm), permissible maximum input speed (r/min, grease/other), backlash (Arc Sec), weight (kg), design life (hours), and version coefficients (FHG‑I … FHG‑V). Selected rows below.

Model 14:
Reduction 50 | Rated torque 7 Nm (0.7 kgfm) | Peak 23 Nm (2.3 kgfm) | Perm. avg 9 Nm (0.9 kgfm) | Max input speed (grease/other) 8500 / 10000 r/min | Backlash ≤20 Arc Sec | Design life coeffs: FHG‑I/II:0.40; FHG‑III:0.7; FHG‑IV:0.66; FHG‑V:0.40
Reduction 80 | Rated torque 10 Nm (1.0 kgfm) | Peak 30 Nm (3.0 kgfm) | Perm. avg 14 Nm (1.4 kgfm) | Max input speed 15000 r/min
Reduction 100 | Rated torque 10 Nm (1.0 kgfm) | Peak 36 Nm (3.6 kgfm) | Perm. avg 14 Nm (1.4 kgfm) | Max input speed 15000 r/min

Model 17 (examples):
Reduction 50 | Rated torque 21 Nm | Peak 44 Nm | Perm. avg 34 Nm | Max input speed 7300 / 10000 r/min | Backlash ≤20 Arc Sec
Reduction 80 | Rated torque 29 Nm | Peak 56 Nm | Perm. avg 35 Nm | Max input speed 15000 r/min

Model 20 (examples):
Reduction 50 | Rated torque 33 Nm | Peak 73 Nm | Perm. avg 44 Nm | Max input speed 6500 / 10000 r/min
Reduction 80 | Rated torque 44 Nm | Peak 96 Nm | Perm. avg 61 Nm | Max input speed 15000 r/min

Models 25 / 32 / 40 (selected excerpts):
FHG-25 | Reduction 50 | Rated torque 51 Nm | Peak 127 Nm | Perm. avg 72 Nm | Max input speed 5600 / 10000 r/min
FHG-32 | Reduction 50 | Rated torque 99 Nm | Peak 281 Nm | Perm. avg 140 Nm | Max input speed 4800 / 10000 r/min
FHG-40 | Reduction 50 | Rated torque 178 Nm | Peak 523 Nm | Perm. avg 255 Nm | Max input speed 4000 / 10000 r/min

Technical specifications

• Brand: HONPINE
• Series / model family: FHG series (versions FHG‑I to FHG‑V referenced)
• Configuration: coaxial input and output; integrated cam wave generator
• Input coupling: input shaft fits into wave generator inner bore and connects via flat key; cam‑shaft bore diameter adjustable to motor model
• Main bearing: built‑in high‑rigidity cross‑roller bearing
• Connection methods: rigid wheel fixed with flexspline output, or flexspline fixed with rigid wheel output
• Key performance data available in tables: starting torque (cNm) per reduction ratio; moment/load limits (Mb, Ft, Fa); rated torque at 2000 r/min; permissible peak torque at start/stop; permissible average torque; permissible maximum input speed; backlash (Arc Sec); weight (kg); design life (hours)
• Available sizes referenced: FHG‑14, FHG‑17, FHG‑20, FHG‑25, FHG‑32, FHG‑40
