Harmonic servo-gearbox CSF 05

coaxial0.1 - 0.2 Nm0.2 - 0.5 Nm

Introduction

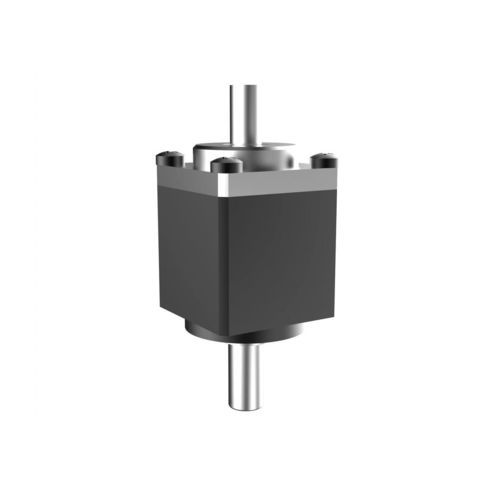

The CSF-mini series miniature harmonic drive is developed for applications with specialized volume and weight requirements, utilizing a cup-style flexspline. This series offers pre-assembled modular products for immediate use. The main bearing uses compact four-point contact ball bearings to directly support external loads. The CSF-mini series includes two types: motor-mount type (2XH) and shaft-input type (1U), which supports input forms such as belts, gears and couplings. Select the model and ratio that match your mechanical design requirements.

Features

• Compact size and lightweight construction
• Streamlined, space-saving cup-style flexspline
• High rotational accuracy and positioning precision
• Coaxial input/output configuration for simple integration
• Pre-assembled modular units for fast installation
• Main bearing: compact four-point contact ball bearings for direct external load support

Specification
Model | Variant | Gear Ratio | Rated torque at input 2000r/min (N.m) | Permissible peak torque during starting and stopping (N.m) | Maximum allowable value of average load torque (N.m) | Maximum instantaneous permissible torque (N.m) | Maximum allowable input speed (r/min) | Allowable average input speed (r/min) | Gear Backlash (arcsec) | 1/4GD (kgcm2) | Mass (kg)
CSF Series | 03 | 30 | 0.06 | 0.13 | 0.10 | 0.22 | 10000 | 6500 | ≤20 | 5.3x10-7 | 0.017
CSF Series | 03 | 50 | 0.11 | 0.21 | 0.13 | 0.41 | 10000 | 6500 | ≤20 | 5.3x10-7 | 0.017
CSF Series | 05 | 30 | 0.25 | 0.50 | 0.38 | 0.90 | 10000 | 6500 | ≤20 | 2.5x10-4 | 0.039
CSF Series | 05 | 50 | 0.40 | 0.90 | 0.53 | 1.80 | 10000 | 6500 | ≤20 | 2.5x10-4 | 0.039
CSF Series | 05 | 80 | 0.52 | 1.35 | 0.84 | 2.50 | 10000 | 6500 | ≤10 | 2.5x10-4 | 0.039
CSF Series | 08 | 30 | 0.90 | 1.80 | 1.40 | 3.30 | 8500 | 3500 | ≤20 | 3.2x10-3 | 0.106
CSF Series | 08 | 50 | 1.80 | 3.30 | 2.30 | 6.60 | 8500 | 3500 | ≤20 | 3.2x10-3 | 0.106
CSF Series | 08 | 80 | 2.20 | 4.30 | 2.90 | 8.00 | 8500 | 3500 | ≤10 | 3.2x10-3 | 0.106
CSF Series | 08 | 100 | 2.40 | 4.80 | 3.30 | 9.00 | 8500 | 3500 | ≤10 | 3.2x10-3 | 0.106
CSF Series | 11 | 30 | 2.10 | 4.10 | 3.10 | 8.20 | 8500 | 3500 | ≤20 | 1.4x10-2 | 0.200
CSF Series | 11 | 50 | 3.50 | 8.30 | 5.50 | 17.00 | 8500 | 3500 | ≤20 | 1.4x10-2 | 0.200
CSF Series | 11 | 80 | 4.50 | 10.20 | 8.50 | 22.00 | 8500 | 3500 | ≤10 | 1.4x10-2 | 0.200
CSF Series | 11 | 100 | 5.00 | 11.00 | 8.90 | 25.00 | 8500 | 3500 | ≤10 | 1.4x10-2 | 0.200

Characteristics / technical specifications

• Series: CSF-mini
• Flexspline type: cup-style flexspline for compact, lightweight applications
• Product form: pre-assembled modular units for immediate use
• Main bearing: compact four-point contact ball bearings to directly support external loads
• Available types: motor-mount (2XH) and shaft-input (1U)
• Supported input forms (1U): belts, gears, couplings
• Coaxial input/output configuration for easy integration
• High rotational accuracy and positioning precision
• Multiple sizes and ratios with corresponding torque, speed, inertia (1/4GD) and mass as listed above
• Applications: designs with strict volume and weight constraints requiring compact, high-precision actuation
