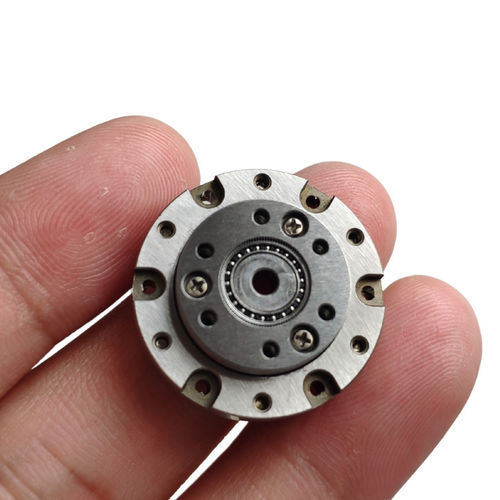

Harmonic servo-gearbox SHD-08

coaxialmodularcompact

Introduction
The SHD-mini series harmonic drive is engineered for applications with strict volume and weight constraints, offering reduced axial dimensions and a top-hat style flexspline. This series provides pre-assembled modular units for immediate integration. The main bearing uses compact four-point contact ball bearings to directly support external loads. Shaft bore diameters can be customized to fit specific motor shafts. Choose the motor model suited to your mechanical design requirements.

Features

• Compact, lightweight construction
• Simplified, space-saving architecture
• Excellent rotational accuracy and positioning precision
• Coaxial input/output configuration
• Pre-assembled modular units for fast integration
• Customizable shaft bore for motor compatibility

Specification (table)
Model | Gear Ratio | Rated torque at input 2000r/min [N.m] | Permissible peak torque during starting and stopping [N.m] | Maximum allowable average load torque [N.m] | Maximum instantaneous permissible torque [N.m] | Maximum allowable input speed [r/min] | Allowable average input speed [r/min] | Gear Backlash (arcsec) | 1/4GD [kgcm2] | Mass (kg)
SHD Series - 03 | 30 | 0.08 | 0.15 | 0.12 | 0.25 | 10000 | 6500 | ≤20 | 7.0x10-4 | 0.016
SHD Series - 03 | 50 | 0.13 | 0.24 | 0.16 | 0.50 | 10000 | 6500 | ≤20 | 7.0x10-4 | 0.016
SHD Series - 05 | 30 | 0.23 | 0.47 | 0.35 | 0.85 | 10000 | 6500 | ≤20 | 2.5x10-4 | 0.040
SHD Series - 05 | 50 | 0.38 | 0.87 | 0.50 | 1.70 | 10000 | 6500 | ≤20 | 2.5x10-4 | 0.040
SHD Series - 05 | 80 | 0.50 | 1.20 | 0.82 | 2.20 | 10000 | 6500 | ≤10 | 2.5x10-4 | 0.040
SHD Series - 08 | 30 | 0.80 | 1.60 | 1.30 | 3.20 | 8500 | 3500 | ≤20 | 3.2x10-3 | 0.061
SHD Series - 08 | 50 | 1.60 | 3.16 | 2.10 | 6.10 | 8500 | 3500 | ≤20 | 3.2x10-3 | 0.061
SHD Series - 08 | 80 | 2.10 | 4.00 | 2.90 | 7.50 | 8500 | 3500 | ≤10 | 3.2x10-3 | 0.061
SHD Series - 08 | 100 | 2.40 | 4.60 | 3.20 | 8.70 | 8500 | 3500 | ≤10 | 3.2x10-3 | 0.061
SHD Series - 11 | 30 | 2.10 | 4.10 | 3.10 | 8.20 | 8500 | 3500 | ≤20 | 1.4x10-2 | 0.127
SHD Series - 11 | 50 | 3.20 | 7.80 | 5.10 | 15.00 | 8500 | 3500 | ≤20 | 1.4x10-2 | 0.127
SHD Series - 11 | 80 | 4.20 | 9.50 | 7.20 | 20.00 | 8500 | 3500 | ≤10 | 1.4x10-2 | 0.127
SHD Series - 11 | 100 | 4.80 | 10.50 | 8.70 | 23.00 | 8500 | 3500 | ≤10 | 1.4x10-2 | 0.127
SHD Series - 14 | 30 | 3.80 | 8.70 | 6.20 | 15.00 | 8500 | 3500 | ≤20 | 3.4x10-1 | 0.312
SHD Series - 14 | 50 | 4.80 | 16.00 | 6.80 | 32.00 | 8500 | 3500 | ≤20 | 3.4x10-1 | 0.312
SHD Series - 14 | 80 | 6.40 | 22.00 | 9.50 | 45.00 | 8500 | 3500 | ≤10 | 3.4x10-1 | 0.312
SHD Series - 14 | 100 | 7.40 | 26.00 | 10.80 | 50.00 | 8500 | 3500 | ≤10 | 3.4x10-1 | 0.312

Technical characteristics

• Series: SHD-mini (models 03, 05, 08, 11, 14)
• Design: top-hat style flexspline, pre-assembled modular units
• Bearings: compact four-point contact ball bearings for direct external load support
• Shaft bore: customizable to match motor shaft sizes
• Input/Output: coaxial configuration
• Rated torque range: approximately 0.08 to 7.40 N·m (model and ratio dependent)
• Maximum instantaneous permissible torque: up to 50 N·m (model dependent)
• Maximum allowable input speed: typically 8,500–10,000 r/min depending on model
• Allowable average input speed: typically 3,500 or 6,500 r/min depending on model
• Gear backlash: typically ≤10 to ≤20 arcsec depending on model
• Inertia (1/4GD): from 7.0x10-4 to 3.4x10-1 kg·cm2 across models
• Mass range: approx. 0.016 to 0.312 kg depending on model
