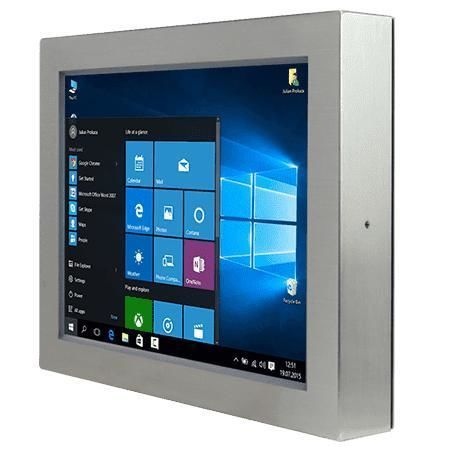

LCD panel PC R15IAD3S-65C3

5-wire resistive touch screen15"Intel® Core i5-1235U

Key Features

• 12th Generation Intel® Core™ i5-1235U 3.3GHz (up to 4.40 GHz)
• Fanless design
• Full IP65 dust and water resistance
• Stainless housing with anti-corrosion treatment
• Optical bonding with anti-moisture treatment (optional)
• 5-wire resistive touch / Anti-reflection protection glass (optional)

Certifications

• IP65
• CE
• FCC

Overview
Waterproof all-around
This Panel PC is engineered for environments requiring frequent cleaning and strict hygiene standards such as food, beverage and pharmaceutical production. Front IP65 protection and stainless housing allow regular washdowns while preserving internal electronics.

Comprehensive I/O and rugged connectivity
Rugged I/O with waterproof M12 and sealed RJ45 connectors provides reliable external connections in industrial settings. Connectors feature screw-on caps for additional protection during washdowns.

Display

• Size: 15.0 inches
• Touch / Glass: 5-wire resistive touch (optional); Protection glass without touch (optional)
• Resolution: 1024 x 768
• Panel brightness: 300 nits
• Contrast ratio: 2000:1
• View angles: 88/88/88/88
• Active area: 304.1 x 228.1 mm

System Specification

• Processor: Intel® Core™ i5-1235U 3.3GHz (up to 4.40 GHz)
• Memory: 8GB default; 16GB and 32GB optional
• Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB; 1 x SATA III bay for 2.5" SSD/HDD up to 2TB (optional)
• Ethernet: Dual Intel® Ethernet controllers
• Security: TPM 2.0
• Operating system options: Windows 11 IoT Enterprise (64 bit) optional; Windows 11 Pro 64 bit optional; Linux Ubuntu 22.04 optional (does not support Wake on Touch)
• WLAN / Bluetooth: optional

Mechanical

• Dimensions: 378 x 301 x 60 mm
• Mounting: VESA mount standard; Yoke mount optional
• Enclosure: Stainless housing with anti-corrosion treatment
• Cooling: Fanless design

Environment

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 45°C
• Storage temperature: -20°C to 60°C
• IP rating: IP65

Certification

• CE
• FCC

IO Ports

• USB: 1 x M12 waterproof connector for 2 x USB2.0
• Serial: 1 x M12 waterproof connector for RS232
• LAN: 1 x waterproof Giga LAN RJ45 connector
• Indicators: LED for power; LED for storage

Control

• 1 x Power button
• 1 x Reset button

Accessory

• 100~240V AC to DC adapter with waterproof connector
• Power cord
• External USB/COM/LAN cables with waterproof connectors
• Waterproof caps, manual, VESA screws

Power

• Power rating: 12V DC (M12 type)

Technical specifications

• Model: R15IAD3S-65C3
• CPU: Intel® Core™ i5-1235U (up to 4.40 GHz)
• Display: 15.0", 1024 x 768, 300 nits, 2000:1, active area 304.1 x 228.1 mm
• Touch: 5-wire resistive (optional)
• Memory: 8GB default, up to 32GB optional
• Storage: 128GB SSD default; multiple SSD options; SATA III bay optional
• Ethernet: Dual Intel® controllers
• Security: TPM 2.0
• Ingress protection: IP65 front; stainless housing with anti-corrosion treatment
• Mounting: VESA standard (yoke optional)
• I/O: M12 waterproof USB and RS232, waterproof RJ45 Giga LAN
• Power: 12V DC (M12)
• Cooling: Fanless
• Certifications: CE, FCC
