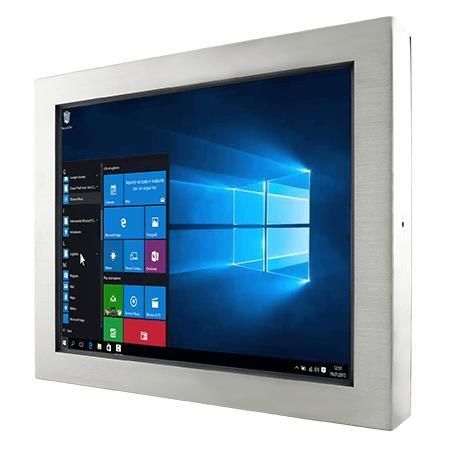

LCD panel PC R17IT3S-65M1

resistive touch screen5-wire resistive touch screentouch screen

Overview
The R17IT3S-65M1 is a 17.0-inch industrial panel PC engineered for demanding and hygienic environments. It integrates an 11th Generation Intel® Core™ i5-1135G7 processor, fanless thermal design, full IP65 dust and water protection, and a stainless steel housing with anti-corrosion treatment. Available options include optical bonding with anti-moisture treatment and a 5-wire resistive touch or protection glass with anti-reflection coating.

Key Features

• 11th Generation Intel® Core™ i5-1135G7 2.4GHz (up to 4.2GHz)
• Fanless design for silent, maintenance-free operation
• Full IP65 dust and water resistance
• Stainless steel housing with anti-corrosion treatment
• Optical bonding with anti-moisture treatment (optional)
• 5-wire resistive touch / anti-reflection protection glass (optional)

Certifications

• IP65
• FCC
• CE

Product Details
Waterproof All-Around
The unit meets IP65 protection to withstand regular cleaning and the strict hygiene requirements of food, beverage and pharmaceutical environments.

Comprehensive I/O Ports
A wide set of I/O ports combined with waterproof connectors and screw-on caps provides flexible connectivity for industrial integrations. Indicators and protected control buttons support reliable operation in harsh conditions.

Technical Specifications

• Display:
  Size: 17.0 inches
  Touch / Glass: 5-wire Resistive Touch (Optional); Protection Glass without touch function (Optional)
  Resolution: 1280 x 1024
  Panel Brightness: 350 nits
  Contrast Ratio: 1000:1
  View Angles: 85, 85, 80, 80
  Active Area: 337.920 x 270.336 mm
• System Specification:
  Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
  Memory: 4GB (Default); optional 8GB, 16GB, 32GB
  Storage: 128GB SSD (Default); optional 256GB, 512GB, 1TB, 2TB, 4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional)
  Ethernet controller: 2 x Intel® Ethernet Controller
  Security: TPM 2.0
  Operating System: Windows 11 IoT Enterprise (64 bit) (Optional); Windows 11 Pro 64 bit (Optional); Linux Ubuntu 22.04 (Optional, does not support Wake on Touch)
  WLAN / Bluetooth: Support (Optional)
• Mechanical:
  Dimension: 412 x 344 x 63.3 mm
  Mounting: VESA mount (Default); Yoke mount (Optional)
  Enclosure: Stainless housing with anti-corrosion treatment
  Cooling System: Fanless design
• Environment:
  Operating Humidity: 10% to 90% RH, non-condensing
  Operating Temperature: 0°C to 45°C
  Storage Temperature: -20°C to 60°C
  IP rating: IP65
• Certification:
  CE, FCC
• IO Ports:
  USB Port: 1 x M12 waterproof connector for 2 x USB2.0
  Serial Port: 1 x M12 waterproof connector for RS232
  LAN: 1 x waterproof Giga LAN RJ45 connector
  Indicator: 1 x LED indicator for power; 1 x LED indicator for storage
• Control:
  Buttons: 1 x Power Button; 1 x Reset Button
• Accessory:
  100~240V AC to DC adapter with waterproof connector; power cord; external USB cable with waterproof connector; external COM cable with waterproof connector; external LAN cable with waterproof connector; waterproof caps; manual; VESA screws
• Power:
  Power Rating: 12V DC (M12 type)
• Model:
  R17IT3S-65M1
