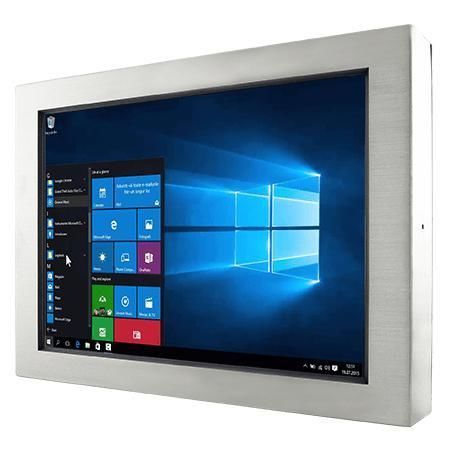

Panel PC with touch screen W24IT3S-65A2

resistive touch screen24"Intel® Core™ i5-1135G7

Overview
The W24IT3S-65A2 is a 24-inch Panel PC designed for industrial environments that require regular cleaning and strict hygiene standards, such as food, beverage and pharmaceutical production. The unit features a fanless architecture, stainless steel enclosure with anti-corrosion treatment and full IP65 protection. Waterproof M12 and RJ45 connectors with screw caps are provided for reliable I/O in wet or washdown conditions. Optional optical bonding with anti-moisture treatment and anti-reflection protection glass are available.

Key Features

• Intel® Core™ i5-1135G7 2.4GHz (up to 4.2GHz)
• Fanless design
• Full IP65 dust and water resistance
• Stainless steel housing with anti-corrosion treatment (SUS316/AISI316)
• Optical bonding with anti-moisture treatment (optional)
• Anti-reflection protection glass (optional)

Display

• Size: 24.0 inches
• Touch / Glass: Resistive touch screen (optional); Protection glass without touch function (optional)
• Resolution: 1920 x 1080 (FHD)
• Panel brightness: 250 nits
• Contrast ratio: 3000:1
• View angles: 89/89/89/89
• Active area: 527.04 x 296.46 mm

System Specification

• Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
• Memory: 4GB default; options 8GB / 16GB / 32GB
• Storage: 128GB SSD default; optional 256GB / 512GB / 1TB / 2TB / 4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional)
• Ethernet controller: Dual Intel® Ethernet controllers
• Security: TPM 2.0
• Operating systems (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (optional, Wake on Touch not supported)
• WLAN / Bluetooth: optional

Mechanical

• Dimensions: 600 x 380 x 60.9 mm
• Mounting: VESA mount (default); Yoke mount (optional)
• Enclosure: Stainless housing
• Cooling: Fanless design

Environment

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 45°C
• Storage temperature: -20°C to 60°C
• IP rating: IP65 (front/full)

Certifications

• CE
• FCC

I/O Ports

• USB: 1 x M12 waterproof connector for 2 x USB2.0
• Serial: 1 x M12 waterproof connector for RS232
• LAN: 1 x waterproof Giga LAN RJ45 connector
• Indicators: 1 x LED for power; 1 x LED for storage

Control

• Buttons: 1 x Power; 1 x Reset

Accessories

• 100~240V AC to DC adapter with waterproof connector
• Power cord
• External USB cable with waterproof connector
• External COM cable with waterproof connector
• External LAN cable with waterproof connector
• Waterproof caps
• Manual
• VESA screws

Power

• Power rating: 12V DC (M12 type)

Technical specifications

• Model: W24IT3S-65A2
• Brand: Winmate
• Display: 24.0" FHD (1920 x 1080), 250 nits, 3000:1
• Processor: Intel® Core™ i5-1135G7 (2.4GHz, up to 4.2GHz)
• Memory: 4GB default; up to 32GB optional
• Storage: 128GB SSD default; up to 4TB; 1 x SATA III for 2.5" up to 2TB (optional)
• Network: Dual Intel® Ethernet controllers; optional WLAN/BT
• Security: TPM 2.0
• Enclosure & protection: Stainless housing with anti-corrosion treatment; IP65 front/full
• Mounting: VESA (default) or yoke mount (optional)
• Dimensions: 600 x 380 x 60.9 mm
• Operating temp/humidity: 0°C to 45°C; 10%–90% RH non-condensing
• Certifications: CE, FCC
• I/O: M12 waterproof USB (2x USB2.0), M12 RS232, waterproof RJ45 Giga LAN
• Buttons & indicators: Power and Reset; power and storage LEDs
• Accessories: AC/DC adapter with waterproof connector, power cord, waterproof external cables and caps, manual, VESA screws
• Power: 12V DC (M12)
