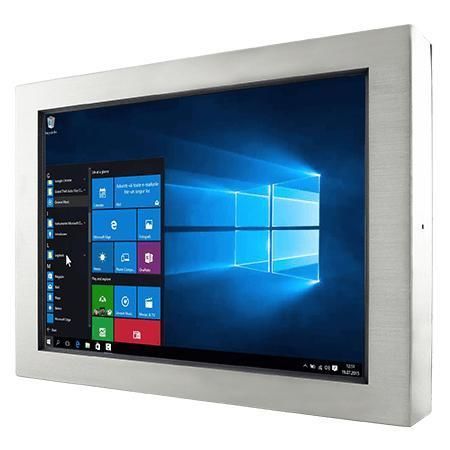

LCD panel PC W22IT3S-65A3

widescreenresistive touch screen5-wire resistive touch screen

Overview
The W22IT3S-65A3 is a 21.5-inch IP65 stainless resistive chassis Panel PC powered by an 11th Gen Intel® Core™ i5 processor. It features a fanless design, full IP65 protection, and a stainless housing with anti-corrosion treatment, making it suitable for hygienic and harsh industrial environments such as food, beverage and pharmaceutical production.

Key Features

• Intel® Core™ i5-1135G7 (2.4GHz, up to 4.2GHz)
• Fanless design for silent, maintenance‑free operation
• Full IP65 dust and water protection
• Stainless steel enclosure with anti-corrosion treatment
• Optical bonding with anti‑moisture treatment (optional)
• 5‑wire resistive touch or protection glass options

Certifications

• IP65
• CE
• FCC

Display

• Size: 21.5 inches
• Touch / Glass: 5‑wire resistive touch (optional) or protection glass (optional)
• Resolution: 1920 x 1080 (FHD)
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• View Angles: 89°/89°/89°/89°
• Active Area: 476.64 x 268.11 mm

System Specification

• Processor: Intel® Core™ i5-1135G7 (2.4GHz up to 4.2GHz)
• Memory: 4GB default; optional 8GB / 16GB / 32GB
• Storage: 128GB SSD default; optional 256GB–4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional)
• Ethernet: 2 x Intel® Ethernet controllers
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Linux Ubuntu 22.04 (optional; Wake on Touch not supported)
• WLAN / BT: optional

Mechanical

• Dimensions: 550 x 340 x 58.6 mm
• Mounting: VESA (default); Yoke mount (optional)
• Enclosure: stainless steel housing
• Cooling: fanless design

Environment

• Operating humidity: 10%–90% RH, non‑condensing
• Operating temperature: 0°C to 45°C
• Storage temperature: -20°C to 60°C
• Ingress protection: IP65

IO Ports

• USB: 1 x M12 waterproof connector for 2 x USB2.0
• Serial: 1 x M12 waterproof connector for RS232
• LAN: 1 x waterproof Gigabit RJ45 connector
• Indicators: LED for power; LED for storage

Control

• 1 x Power button
• 1 x Reset button

Accessory

• 100–240V AC to DC adapter with waterproof connector
• Power cord
• External USB/COM/LAN cables with waterproof connectors
• Waterproof caps
• Manual
• VESA screws

Power

• Power rating: 12V DC (M12 type)

Technical specifications

• Model: W22IT3S-65A3
• Display: 21.5" FHD (1920 x 1080), 250 nits, 3000:1 contrast
• Processor: Intel® Core™ i5-1135G7 (2.4GHz up to 4.2GHz)
• Memory: 4GB default; up to 32GB optional
• Storage: 128GB SSD default; expandable up to 4TB; optional 1 x SATA III for 2.5" drive
• Enclosure: stainless steel with anti‑corrosion treatment
• Ingress protection: IP65 (front/full)
• Certifications: CE, FCC
• Dimensions: 550 x 340 x 58.6 mm; VESA mounting standard
• Power: 12V DC (M12)
