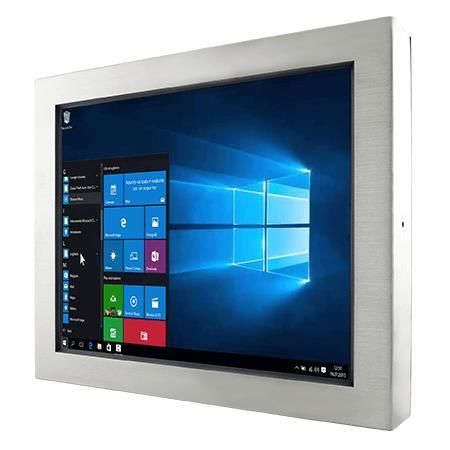

LCD panel PC R19IAD3S-65M1

resistive touch screen5-wire resistive touch screentouch screen

Overview
The R19IAD3S-65M1 is a 19" stainless steel IP65 panel PC engineered for industrial environments requiring washdown capability and corrosion resistance. It integrates a 12th Gen Intel® Core™ i5-1235U processor in a fanless design and supports optional optical bonding and resistive touch variants.

Key Features

• Intel® Core™ i5-1235U (12th Gen) 3.3 GHz (up to 4.40 GHz)
• Fanless thermal design
• Front IP65 dust and water protection
• Stainless steel housing with anti-corrosion treatment
• Optical bonding with anti-moisture treatment (optional)
• 5-wire resistive touch or protection glass (optional)

Certifications

• IP65
• FCC
• CE

Product Highlights

• Waterproof all around: Front IP65 sealing and corrosion-treated housing support regular cleaning cycles and hygiene protocols in food, beverage and pharmaceutical applications.
• Rugged I/O: Multiple waterproof I/O connectors (M12, waterproof RJ45) with screw-on caps available for secure external connections.

Display

• Size: 19.0 inches
• Touch / Glass: 5-wire resistive touch (optional); protection glass without touch (optional)
• Resolution: 1280 x 1024
• Brightness: 250 nits
• Contrast ratio: 1000:1
• Viewing angles: 85/85/80/80 (degrees)
• Active area: 376.32 x 301.06 mm

System Specification

• Processor: Intel® Core™ i5-1235U 3.3 GHz (up to 4.40 GHz)
• Memory: 8GB default; optional 16GB or 32GB
• Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional)
• Ethernet: 2 x Intel® Ethernet controllers
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Ubuntu 22.04 (Wake on Touch not supported)
• WLAN / Bluetooth: optional

Mechanical

• Dimensions: 468 x 395 x 63 mm
• Mounting: VESA mount (default); Yoke mount (optional)
• Enclosure: Stainless steel housing
• Cooling: Fanless design

Environment

• Operating humidity: 10%–90% RH, non-condensing
• Operating temperature: 0°C to 45°C
• Storage temperature: -20°C to 60°C
• Ingress protection: IP65 (front)

IO Ports

• USB: 1 x M12 waterproof connector for 2 x USB2.0
• Serial: 1 x M12 waterproof connector for RS232
• LAN: 1 x waterproof Gigabit RJ45 connector
• Indicators: Power LED; Storage LED

Control

• Buttons: 1 x Power; 1 x Reset

Accessory

• 100~240V AC to DC adapter with waterproof connector
• Power cord
• External USB/COM/LAN cables with waterproof connectors
• Waterproof caps
• Manual
• VESA screws

Power

• Power input: 12V DC (M12 type)

Technical specifications

• Model: R19IAD3S-65M1
• Brand: Winmate
• Screen: 19.0"; 1280 x 1024; 250 nits; 1000:1
• Processor: Intel® Core™ i5-1235U (3.3 GHz, up to 4.40 GHz)
• Memory: 8GB default (options: 16GB / 32GB)
• Storage: 128GB SSD default (options up to 4TB); SATA III for 2.5" up to 2TB (optional)
• Ethernet: 2 x Intel® controllers
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise, Windows 11 Pro, Ubuntu 22.04 (optional)
• Ingress protection: IP65; stainless housing with anti-corrosion treatment
• Dimensions: 468 x 395 x 63 mm; VESA mount default
• Operating temp/humidity: 0°C to 45°C; 10%–90% RH non-condensing
• Certifications: CE, FCC
• I/O highlights: M12 waterproof USB and RS232; waterproof Gigabit RJ45
• Power: 12V DC (M12)
