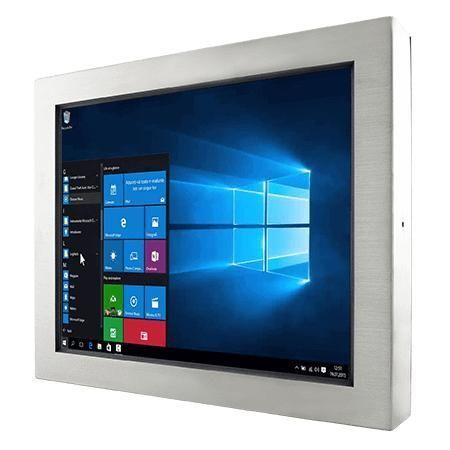

5-wire resistive touch screen panel PC R17IE3S-65M1

touch screen17"Intel® Atom x6413E

Overview
The R17IE3S-65M1 is a 17-inch Panel PC with Intel Atom® x6413E, designed for hygienic and harsh industrial environments. It features a full IP65 waterproof enclosure, SUS 316 / AISI 316 stainless steel housing, and a fanless cooling system. Optical bonding with anti‑moisture treatment and 5‑wire resistive touch or protection glass are available as options.

Key features

• Intel Atom® x6413E Elkhart Lake processor (up to 3.0 GHz)
• Fanless design
• Full IP65 dust/water protection
• SUS 316 / AISI 316 stainless steel housing for food, beverage and chemical industries
• Optical bonding with anti‑moisture treatment (optional)
• 5‑wire resistive touch / Anti‑reflection protection glass (optional)

Certifications

• IP65
• CE
• FCC

Highlights
Waterproof all-around
The Panel PC complies with water and dust resistance requirements for regular cleaning and strict hygiene standards in food, beverage and pharmaceutical environments.

Comprehensive I/O ports
Rugged design combined with a wide range of I/O ports makes the device suitable for multiple industrial applications. Waterproof connectors include screw-on caps for added protection.

Technical specifications

• Display Size: 17.0 inches; Resolution: 1280 x 1024; Panel Brightness: 350 nits; Contrast Ratio: 1000:1; View Angles: 85/85/80/80; Active Area: 337.920 x 270.336 mm
• Touch / Glass: 5‑wire resistive touch (optional); Protection glass without touch function (optional)
• Processor: Intel Atom® x6413E (up to 3.0 GHz)
• Memory: 4 GB (default); 8 GB / 16 GB (optional)
• Storage: 128 GB SSD (default); 256 GB / 512 GB / 1 TB / 2 TB (optional)
• Ethernet controller: 1 x Intel® Ethernet Controller
• Operating system (optional): Windows 11 IoT Enterprise (64 bit); Windows 11 Pro (64 bit); Windows 10 IoT Enterprise (64 bit); Linux Ubuntu 22.04
• WLAN / Bluetooth: support (optional)
• Dimensions: 412 x 344 x 63.3 mm
• Mounting: VESA mount (default); Yoke mount (optional)
• Enclosure: Stainless housing (SUS 316 / AISI 316)
• Cooling system: Fanless design
• Operating humidity: 10% to 90% RH, non‑condensing
• Operating temperature: 0°C to 45°C
• Storage temperature: -20°C to 60°C
• IP rating: IP65
• IO Ports:

  • USB: 1 x M12 waterproof connector for 2 x USB 2.0
  • Serial: 1 x M12 waterproof connector for RS232
  • LAN: 1 x waterproof Giga LAN RJ45 connector
  • Indicators: 1 x LED for power; 1 x LED for storage
• Control buttons: 1 x Power; 1 x Reset
• Accessories (included / available):

  • 100~240V AC to DC adapter with waterproof connector
  • Power cord
  • External USB cable with waterproof connector
  • External COM cable with waterproof connector
  • External LAN cable with waterproof connector
  • Waterproof caps
  • Manual
  • VESA screws
• Power rating: 12 V DC (M12 type)
