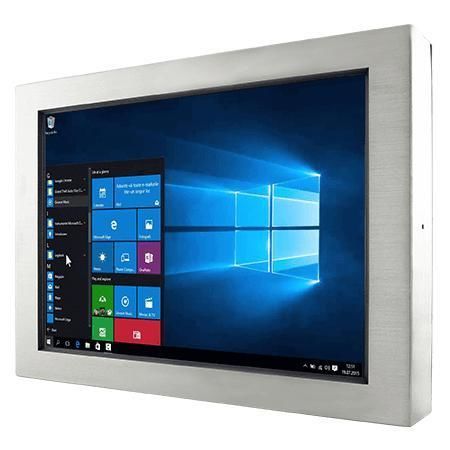

Resistive touch screen panel PC W24IE3S-65A2

touch screen24"Intel® Atom x6413E

Overview
The W24IE3S-65A2 is a 24-inch industrial panel PC engineered for hygienic and harsh environments. It features an IP65-rated front, SUS316 / AISI316 stainless steel housing, a fanless thermal design and optional optical bonding or anti-reflection protection glass to support food, beverage, chemical and pharmaceutical applications.

Key Features

• Intel Atom® x6413E (Elkhart Lake) processor
• Fanless design for low-maintenance operation
• Full IP65 dust/water protection (front)
• SUS316 / AISI316 stainless steel enclosure suitable for hygienic environments
• Optional optical bonding with anti‑moisture treatment
• Optional anti‑reflection protection glass; resistive touch option

Certifications

• IP65
• CE
• FCC

Product Highlights
Designed to withstand regular washdowns and strict hygiene procedures, the unit combines rugged stainless construction with a broad set of waterproof I/O connectors (screw‑on caps) and configurable storage/memory options to match industrial use cases.

Display

• Size: 24.0 inches
• Touch / Glass: Resistive touch screen (optional); protection glass w/o touch (optional)
• Resolution: 1920 x 1080
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• View Angles: 89/89/89/89
• Active Area: 527.04 x 296.46 mm

System Specification

• Processor: Intel Atom® x6413E (up to 3.0 GHz)
• Memory: 4 GB (default); 8 GB, 16 GB optional
• Storage: 128 GB SSD (default); optional 256 GB / 512 GB / 1 TB / 2 TB
• Ethernet controller: 1 x Intel® Ethernet Controller
• Operating System: Optional Windows 11 IoT Enterprise / Windows 11 Pro / Windows 10 IoT Enterprise / Linux Ubuntu 22.04
• WLAN / Bluetooth: optional

Mechanical

• Dimensions: 600 x 380 x 60.9 mm
• Mounting: VESA mount (default); Yoke mount optional
• Enclosure: SUS316 / AISI316 stainless housing
• Cooling: Fanless design

Environment

• Operating humidity: 10% to 90% RH, non‑condensing
• Operating temperature: 0°C to 45°C
• Storage temperature: -20°C to 60°C
• IP rating: IP65 (front)

IO Ports

• USB: 1 x M12 waterproof connector for 2 x USB2.0
• Serial: 1 x M12 waterproof connector for RS232
• LAN: 1 x waterproof Giga LAN RJ45 connector
• Indicators: LED for power; LED for storage

Control

• Buttons: 1 x Power; 1 x Reset

Accessories

• 100–240V AC to DC adapter with waterproof connector
• Power cord; external USB/COM/LAN cables with waterproof connectors; waterproof caps
• Manual; VESA screws

Power

• Power rating: 12V DC (M12 type)

Technical specifications

• Model: W24IE3S-65A2
• Brand: Winmate
• Display size: 24.0 inches
• Resolution: 1920 x 1080
• Brightness: 250 nits
• Contrast ratio: 3000:1
• Active area: 527.04 x 296.46 mm
• Processor: Intel Atom® x6413E (up to 3.0 GHz)
• Memory: 4 GB default (optional 8 GB / 16 GB)
• Storage: 128 GB SSD default (options up to 2 TB)
• Enclosure: SUS316 / AISI316 stainless steel
• IP rating: IP65
• Dimensions: 600 x 380 x 60.9 mm
• Mounting: VESA (default)
• Operating temp: 0°C to 45°C
• Power: 12V DC (M12)
• Certifications: CE, FCC
