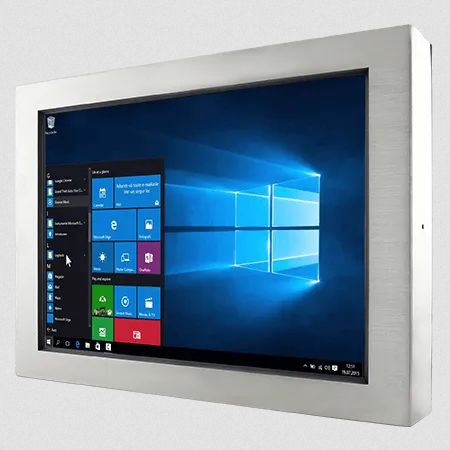

5-wire resistive touch screen panel PC W22IAD3S-65A3

21.5"Intel® Core i5-1235U1920 x 1080

Overview
The W22IAD3S-65A3 is a 21.5-inch IP65-rated stainless steel panel PC designed for hygienic and washdown industrial environments. It features a fanless architecture, corrosion-resistant stainless housing and waterproof I/O connectors, suitable for food, beverage and pharmaceutical applications.

Key Features

• 12th Gen Intel® Core™ i5-1235U (3.3 GHz, up to 4.40 GHz)
• Fanless thermal design
• Front IP65 dust and water protection
• Stainless steel housing with anti-corrosion treatment
• Optional optical bonding with anti-moisture treatment
• Optional 5-wire resistive touch or anti-reflection protection glass

Display

• Size: 21.5 inches
• Resolution: 1920 x 1080 (FHD)
• Brightness: 250 nits
• Contrast Ratio: 3000:1
• Viewing Angles: 89/89/89/89
• Active Area: 476.64 x 268.11 mm
• Touch/Glass: 5-wire resistive touch (optional); protection glass without touch (optional)

System Specification

• Processor: Intel® Core™ i5-1235U (3.3 GHz, up to 4.40 GHz)
• Memory: 8GB default; 16GB and 32GB optional
• Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional)
• Ethernet: 2 x Intel® Ethernet Controllers
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Linux Ubuntu 22.04 (no Wake on Touch)
• WLAN / Bluetooth: optional

Mechanical

• Dimensions: 550 x 340 x 58.6 mm
• Mounting: VESA mount (default); Yoke mount (optional)
• Enclosure: Stainless steel housing
• Cooling: Fanless design

Environment

• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP Rating: IP65 (front)

Certifications

• CE
• FCC

I/O Ports

• USB: 1 x M12 waterproof connector for 2 x USB 2.0
• Serial: 1 x M12 waterproof connector for RS232
• LAN: 1 x waterproof Giga LAN RJ45 connector
• Indicators: 1 x power LED; 1 x storage LED

Control

• Buttons: 1 x Power button; 1 x Reset button

Accessory

• 100–240V AC to 12V DC adapter with waterproof connector
• Power cord
• External USB/COM/LAN cables with waterproof connectors
• Waterproof caps
• Manual and VESA screws

Power

• Power Input: 12V DC (M12 type)

Technical specifications

• Model: W22IAD3S-65A3
• Display Size: 21.5"
• Resolution: 1920 x 1080
• Processor: Intel® Core™ i5-1235U
• Memory: 8GB default; up to 32GB optional
• Storage Options: 128GB SSD default; up to 4TB or 1 x SATA III (2.5" up to 2TB)
• IP Rating: IP65 front; full dust/water resistant design
• Housing: Stainless steel with anti-corrosion treatment
• Touch: 5-wire resistive touch (optional) or protection glass (optional)
• Connectivity: 2 x Intel® Ethernet Controllers; waterproof LAN and M12 USB/serial connectors
• Security: TPM 2.0
• OS Support: Windows 11 IoT Enterprise, Windows 11 Pro, Linux Ubuntu 22.04 (optional)
• Operating Temp.: 0°C to 45°C
• Storage Temp.: -20°C to 60°C
• Humidity: 10%–90% RH non-condensing
• Certifications: CE, FCC
• Power Input: 12V DC (M12)
