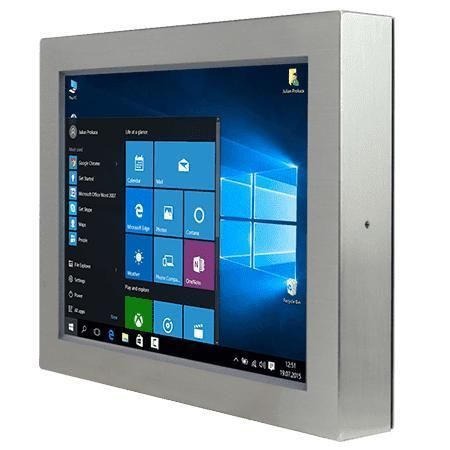

Panel PC with touch screen R15IT3S-65C3

resistive touch screen5-wire resistive touch screen15"

Product

• 15.0-inch industrial Panel PC R15IT3S-65C3 with 11th Gen Intel® Core™ i5, IP65 stainless steel resistive chassis.
• Fanless design and anti-corrosion stainless housing for hygienic, washdown-capable environments.

Overview
The R15IT3S-65C3 is designed for industrial applications requiring full front protection against dust and water (IP65) and reliable operation in food, beverage and pharmaceutical production lines. Robust I/O with waterproof connectors enables integration with factory equipment and harsh environments.

Key Features

• Intel® Core™ i5-1135G7 (2.4GHz, up to 4.2GHz)
• Fanless thermal design
• IP65 dust/water protection
• Stainless steel housing with anti-corrosion treatment
• Optional optical bonding with anti-moisture treatment
• Optional 5-wire resistive touch or protection glass

Certifications

• IP65
• CE
• FCC

Display

• Size: 15.0 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass w/o Touch Function (Optional)
• Resolution: 1024 x 768
• Brightness: 300 nits
• Contrast Ratio: 2000:1
• View Angles: 88/88/88/88
• Active Area: 304.1 x 228.1 mm

System Specification

• Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
• Memory: 4GB (default); options: 8GB / 16GB / 32GB
• Storage: 128GB SSD (default); options up to 4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional)
• Ethernet: 2 x Intel® Ethernet Controller
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise (64-bit) / Windows 11 Pro / Ubuntu 22.04 (optional)
• WLAN / BT: optional

Mechanical

• Dimensions: 378 x 301 x 60 mm
• Mounting: VESA mount (default); Yoke mount (optional)
• Enclosure: Stainless housing
• Cooling: Fanless design

Environment

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 45°C
• Storage temperature: -20°C to 60°C
• IP rating: IP65

IO Ports

• USB: 1 x M12 waterproof connector for 2 x USB2.0
• Serial: 1 x M12 waterproof connector for RS232
• LAN: 1 x waterproof Giga LAN RJ45 connector
• Indicators: Power LED; Storage LED

Control

• 1 x Power button; 1 x Reset button

Accessory

• 100~240V AC to DC adapter with waterproof connector
• Power cord; External waterproof USB/COM/LAN cables; Waterproof caps; Manual; VESA screws

Power

• Power rating: 12V DC (M12 type)

Technical specifications

• Model: R15IT3S-65C3
• Brand: Winmate
• Processor: Intel Core i5-1135G7 (2.4GHz, up to 4.2GHz)
• Display: 15.0" 1024x768, 300 nits, 2000:1
• Memory: 4GB default, up to 32GB optional
• Storage: 128GB SSD default; multiple optional capacities; optional SATA III bay
• Networking: Dual Intel® Ethernet controllers
• Security: TPM 2.0
• Ingress protection: IP65; stainless housing with anti-corrosion treatment
• Dimensions & mounting: 378 x 301 x 60 mm; VESA default
