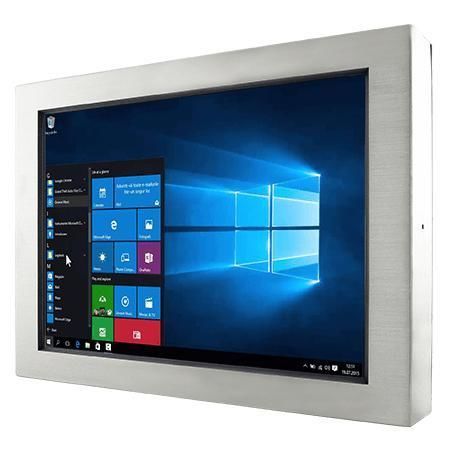

LCD panel PC W24IAD3S-65A2

resistive touch screen5-wire resistive touch screen24"

Overview
The W24IAD3S-65A2 is a 24.0 inches industrial Panel PC by Winmate featuring an Intel® Core™ i5-1235U processor, fanless cooling and an IP65-rated stainless steel resistive chassis. It is designed for hygienic and washdown environments with optional optical bonding and resistive touch variants.

Key Features

• 12th Gen Intel® Core™ i5-1235U (3.3 GHz, up to 4.40 GHz)
• Fanless design
• Full IP65 dust and water resistance (front)
• Stainless steel housing with anti-corrosion treatment
• Optical bonding with anti-moisture treatment (optional)
• 5-wire resistive touch or protection glass (optional)

Certifications

• IP65
• FCC
• CE

Waterproof All-Around
The Panel PC meets cleaning and hygiene requirements for food, beverage and pharmaceutical production areas. Front protection and sealed connectors allow routine washdown procedures.

Comprehensive I/O Ports
Rugged connectivity includes waterproof M12 and sealed RJ45 connectors with screw caps. Ports cover USB, serial (RS232) and Gigabit LAN to support diverse industrial interfaces.

Specifications
Display

• Size: 24.0 inches
• Touch / Glass: 5-wire resistive touch (optional); protection glass w/o touch (optional)
• Resolution: 1920 x 1080 (FHD)
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• Viewing Angles: 89/89/89/89
• Active Area: 527.04 x 296.46 mm

System Specification

• Processor: Intel® Core™ i5-1235U (3.3 GHz, up to 4.40 GHz)
• Memory: 8 GB default (16 GB / 32 GB optional)
• Storage: 128 GB SSD default (upgrades to 256 GB / 512 GB / 1 TB / 2 TB / 4 TB); 1 x SATA III for 2.5" SSD/HDD up to 2 TB (optional)
• Ethernet: 2 x Intel® Ethernet Controller
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (optional; Wake on Touch not supported by Linux)
• WLAN / Bluetooth: optional

Mechanical

• Dimensions: 600 x 380 x 60.9 mm
• Mounting: VESA mount (default); Yoke mount (optional)
• Enclosure: Stainless housing
• Cooling: Fanless design

Environment

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 45°C
• Storage temperature: -20°C to 60°C
• IP rating: IP65

Certification

• CE
• FCC

IO Ports

• USB: 1 x M12 waterproof connector for 2 x USB2.0
• Serial: 1 x M12 waterproof connector for RS232
• LAN: 1 x waterproof Gigabit RJ45 connector
• Indicators: 1 x LED power; 1 x LED storage

Control

• Buttons: 1 x Power; 1 x Reset

Accessory

• 100–240V AC to DC adapter with waterproof connector
• Power cord
• External USB/COM/LAN cables with waterproof connectors
• Waterproof caps
• Manual
• VESA screws

Power

• Power input: 12V DC (M12 type)

Technical specifications

• Model: W24IAD3S-65A2
• Brand: Winmate
• Display: 24.0 inches FHD (1920 x 1080), 250 nits
• CPU: Intel® Core™ i5-1235U (up to 4.40 GHz)
• Memory: 8 GB default, expandable to 16/32 GB
• Storage: 128 GB SSD default, up to 4 TB optional; SATA III support for 2.5" drives
• Touch: optional 5-wire resistive or protection glass
• Enclosure / Rating: stainless housing, IP65 front
• Dimensions: 600 x 380 x 60.9 mm; VESA mounting
• Connectivity: M12 waterproof USB and serial; waterproof RJ45 LAN
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04 (optional)
• Operating temp/humidity: 0°C to 45°C; 10% to 90% RH non-condensing
• Certifications: CE, FCC
• Power input: 12V DC (M12)
