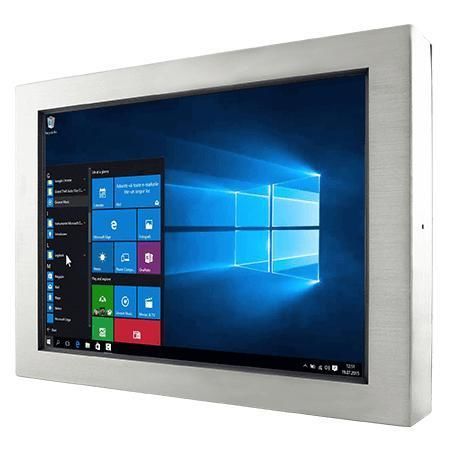

LCD panel PC W22IE3S-65A3

resistive touch screen5-wire resistive touch screen21.5"

Overview
The W22IE3S-65A3 is a 21.5" chassis panel PC built for hygienic and industrial environments, offering a fully waterproof IP65 enclosure, SUS 316 / AISI 316 stainless housing and fanless cooling. It is intended for Food, Beverage and Pharmaceutical applications that require frequent cleaning and strict hygiene controls.

Key Features

• Intel Atom® x6413E Elkhart Lake processor
• Fanless design for quiet, maintenance‑free operation
• Full IP65 dust/water resistant enclosure
• SUS 316 / AISI 316 stainless housing for food and chemical environments
• Optical bonding with anti‑moisture treatment (optional)
• 5‑wire resistive touch / anti‑reflection protection glass (optional)

Certifications

• IP65
• FCC
• CE

Product Details

• Waterproof all‑around: designed to withstand regular washdowns and meet hygiene standards for food, beverage and pharmaceutical sectors.
• Comprehensive I/O: rugged set of ports with waterproof connectors and screw‑on caps for added protection; external waterproof cables available.
• Mounting and accessories: VESA mount standard, yoke mount optional; 100–240V AC to DC adapter with waterproof connector and supplied cables.

Technical specifications

• Display - Size: 21.5 inches
• Display - Touch / Glass: Resistive Touch Screen (Optional); Protection Glass without Touch Function (Optional)
• Display - Resolution: 1920 x 1080
• Display - Panel Brightness: 250.0 nits
• Display - Contrast Ratio: 3000:1
• Display - View Angles: 89, 89, 89, 89
• Display - Active Area: 476.64 x 268.11 mm
• System - Processor: Intel Atom® x6413E (up to 3.0 GHz)
• System - Memory: 4GB (Default); 8GB (Optional); 16GB (Optional)
• System - Storage: 128GB SSD (Default); 256GB, 512GB, 1TB, 2TB (Optional)
• System - Ethernet controller: 1 x Intel® Ethernet Controller
• System - Operating System: Windows 11 IoT Enterprise (64-bit) (Optional); Windows 11 Pro 64-bit (Optional); Windows 10 IoT Enterprise (64-bit) (Optional); Linux Ubuntu 22.04 (Optional)
• System - WLAN: Support (Optional)
• System - Bluetooth: Support (Optional)
• Mechanical - Dimension: 550 x 340 x 58.6 mm
• Mechanical - Mounting: VESA mount (Default); Yoke mount (Optional)
• Mechanical - Enclosure: Stainless Housing (SUS 316 / AISI 316)
• Mechanical - Cooling System: Fanless Design
• Environment - Operating Humidity: 10% to 90% RH, Non‑Condensing
• Environment - Operating Temperature: 0°C to 45°C
• Environment - Storage Temperature: -20°C to 60°C
• Environment - IP rating: IP65
• Certification: CE, FCC
• IO Ports - USB Port: 1 x M12 Waterproof Connector for 2 x USB 2.0
• IO Ports - Serial Port: 1 x M12 Waterproof Connector for RS232
• IO Ports - LAN: 1 x Waterproof Giga LAN RJ45 Connector
• IO Ports - Indicator: 1 x LED indicator for power; 1 x LED indicator for storage
• Control - Button: 1 x Power Button; 1 x Reset Button
• Accessory: 100~240V AC to DC Adapter with waterproof connector; Power Cord; External USB cable with waterproof connector; External COM cable with waterproof connector; External LAN cable with waterproof connector; Waterproof caps; Manual; VESA screws
• Power - Power Rating: 12V DC (M12 type)
