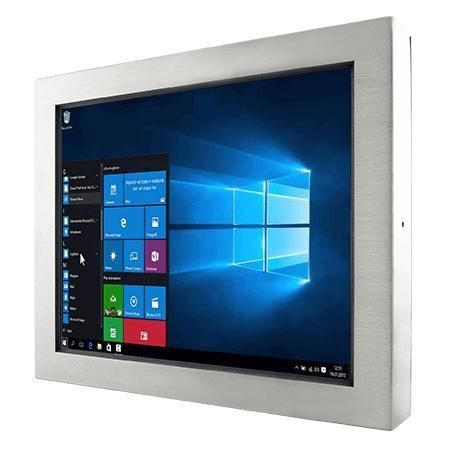

Resistive touch screen panel PC R15IE3S-65C3

5-wire resistive touch screentouch screen15"

Overview
15-inch Panel PC R15IE3S-65C3 equipped with Intel Atom® x6413E, IP65-rated SUS316 stainless steel enclosure and fanless cooling. Engineered for hygienic and washdown environments such as food, beverage and pharmaceutical production.

Key Features

• Intel Atom® x6413E Elkhart Lake processor
• Fanless design for silent, dust-free operation
• Full IP65 dust and water protection
• SUS316 / AISI316 stainless steel enclosure suitable for food and chemical environments
• Optical bonding with anti-moisture treatment (optional)
• 5-wire resistive touch or anti-reflection protection glass (optional)

Certifications

• IP65
• FCC
• CE

Product Details
Waterproof all-around to support regular washdown procedures and strict hygiene protocols. Robust industrial I/O with waterproof M12 and Gigabit RJ45 connectors fitted with screw caps for enhanced protection. Multiple mounting options and accessory set facilitate integration into production lines and clean environments.

Specifications

• Display: 15.0 inches; Resolution 1024 x 768; Brightness 300 nits; Contrast 2000:1; Active area 304.1 x 228.1 mm
• Touch/Glass: 5-wire resistive touch (optional) or protection glass without touch (optional)
• Processor: Intel Atom® x6413E (up to 3.0 GHz)
• Memory: 4 GB default; 8 GB and 16 GB optional
• Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB / 2 TB
• Ethernet controller: 1 x Intel Ethernet controller; LAN: waterproof Gigabit RJ45
• I/O ports: 1 x M12 waterproof connector for 2 x USB2.0; 1 x M12 waterproof connector for RS232; LEDs for power and storage
• Mechanical: Dimensions 378 x 301 x 60 mm; VESA mount standard; Yoke mount optional; Stainless housing
• Power: 12V DC (M12 type)
• Environment: Operating 0°C to 45°C; Humidity 10%–90% RH non-condensing; Storage -20°C to 60°C; IP65
• Accessories: 100~240V AC to DC adapter with waterproof connector; power cord; external USB/COM/LAN cables with waterproof connectors; waterproof caps; manual; VESA screws
