LCD panel PC R17IAD3S-65M1

TFT LCDresistive touch screen5-wire resistive touch screen

Overview

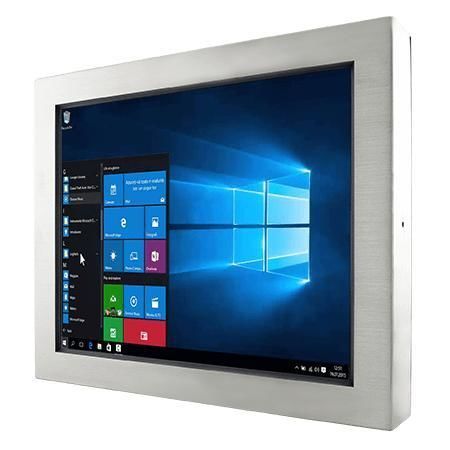

The R17IAD3S-65M1 is a 17-inch industrial panel PC designed for hygienic and washdown environments. It features a 12th Gen Intel® Core™ i5-1235U processor, a fanless thermal design and an IP65-rated stainless steel resistive chassis. Configurations include optional optical bonding with anti-moisture treatment and optional 5-wire resistive touch or protection glass.

Key Features

• Intel® Core™ i5-1235U (12th Gen) 3.3 GHz (up to 4.40 GHz)
• Fanless design for maintenance-free operation
• Front and enclosure protection: IP65 dust/water resistance
• Stainless steel housing with anti-corrosion treatment
• Optional optical bonding with moisture protection
• Optional 5-wire resistive touch or anti-reflection protection glass

Certifications

• IP65
• CE
• FCC

Product Details

• Washdown-capable: Sealed construction suitable for regular cleaning and strict hygiene standards in food, beverage and pharmaceutical environments.
• Rugged connectivity: Waterproof I/O with M12 connectors and waterproof RJ45; connectors include screw-on caps for added protection.

Technical Specifications

• Display: 17.0"; Resolution 1280 x 1024; Brightness 350 nits; Contrast 1000:1; Viewing angles 85/85/80/80; Active area 337.920 x 270.336 mm
• Touch/Glass: 5-wire resistive touch (optional) or protection glass without touch (optional)
• Processor: Intel® Core™ i5-1235U (3.3 GHz, up to 4.40 GHz)
• Memory: 8 GB (default); optional 16 GB, 32 GB
• Storage: 128 GB SSD (default); optional 256 GB–4 TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (optional)
• Ethernet: 2 x Intel® Ethernet Controller
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise / Windows 11 Pro / Linux Ubuntu 22.04 (optional; Wake on Touch not supported)

I/O & Connectivity

• USB: 1 x M12 waterproof connector for 2 x USB 2.0
• Serial: 1 x M12 waterproof connector for RS232
• LAN: 1 x waterproof Giga LAN RJ45 connector
• Indicators: 1 x LED for power; 1 x LED for storage

Mechanical & Mounting

• Dimensions: 412 x 344 x 63.3 mm
• Mounting: VESA mount (default); Yoke mount (optional)
• Enclosure: Stainless housing with anti-corrosion treatment
• Cooling: Fanless design

Environment & Operating Conditions

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 45°C
• Storage temperature: -20°C to 60°C
• IP rating: IP65

Accessories & Power

• Included/optional accessories: 100–240V AC to DC adapter with waterproof connector; power cord; external USB/COM/LAN cables with waterproof connectors; waterproof caps; manual; VESA screws
• Power: 12V DC (M12 type)

Model / Brand

• Model: R17IAD3S-65M1
• Brand: Winmate
