5-wire resistive touch screen panel PC R19IE3S-65M1
19"Intel® Atom x6413E1280 x 1024

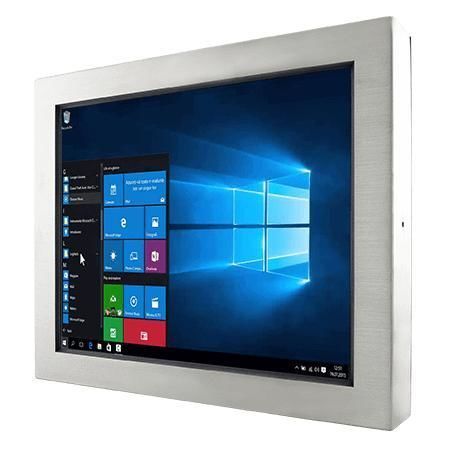

5-wire resistive touch screen panel PC - R19IE3S-65M1 - Winmate, Inc. - 19" / Intel® Atom x6413E / 1280 x 1024
5-wire resistive touch screen panel PC - R19IE3S-65M1 - Winmate, Inc. - 19" / Intel® Atom x6413E / 1280 x 1024
5-wire resistive touch screen panel PC - R19IE3S-65M1 - Winmate, Inc. - 19" / Intel® Atom x6413E / 1280 x 1024 - image - 2
5-wire resistive touch screen panel PC - R19IE3S-65M1 - Winmate, Inc. - 19" / Intel® Atom x6413E / 1280 x 1024 - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
5-wire resistive touch screen
Display size
19"
Processor
Intel® Atom x6413E
Resolution
1280 x 1024
Operating system
Linux® Ubuntu™, Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Windows 11 Pro
Construction
fanless, stainless steel frame, metal chassis
Mounting
VESA mounting
Applications
industrial, for the food industry, for the pharmaceutical industry, for the chemical industry, for hygienic applications
Protection level
IP65
Other characteristics
WiFi, Bluetooth, USB 2.0, Ethernet, with external power adapter, RJ45
Memory size

Min.: 4 GB

Max.: 16 GB

Description

Product
  • 19" Panel PC R19IE3S-65M1 with Intel Atom® x6413E, IP65 stainless steel resistive chassis


Overview
  • Designed for industrial environments requiring frequent washdowns and strict hygiene (food, beverage, pharmaceutical). Fully IP65-rated enclosure in SUS 316 / AISI 316 stainless steel with fanless cooling.
  • Comprehensive, rugged I/O with waterproof M12 and RJ45 connectors; connectors include screw-on caps for added protection.


Key Features
  • Intel Atom® x6413E (Elkhart Lake)
  • Fanless design
  • Full IP65 dust/water protection
  • SUS 316 / AISI 316 stainless housing for food and chemical industries
  • Optical bonding with anti-moisture treatment (optional)
  • 5-wire resistive touch or protection glass options


Certifications
  • IP65
  • FCC
  • CE


Display
  • Size: 19.0"
  • Touch / Glass: 5-wire resistive touch (optional); protection glass without touch (optional)
  • Resolution: 1280 x 1024
  • Brightness: 250 nits
  • Contrast ratio: 1000:1
  • Viewing angles: 85/85/80/80
  • Active area: 376.32 x 301.06 mm


System Specification
  • Processor: Intel Atom® x6413E (up to 3.0 GHz)
  • Memory: 4GB default; 8GB / 16GB optional
  • Storage: 128GB SSD default; 256GB / 512GB / 1TB / 2TB optional
  • Ethernet controller: 1 x Intel® Ethernet Controller
  • Operating System: Windows 11 IoT Enterprise 64-bit (opt); Windows 11 Pro 64-bit (opt); Windows 10 IoT Enterprise 64-bit (opt); Linux Ubuntu 22.04 (opt)
  • WLAN / Bluetooth: optional


Mechanical
  • Dimensions: 468 x 395 x 63 mm
  • Mounting: VESA mount (default); Yoke mount (optional)
  • Enclosure: SUS 316 / AISI 316 stainless housing
  • Cooling: Fanless design


Environment
  • Operating humidity: 10% to 90% RH, non-condensing
  • Operating temperature: 0°C to 45°C
  • Storage temperature: -20°C to 60°C
  • Ingress protection: IP65


Certification
  • CE
  • FCC


IO Ports
  • USB: 1 x M12 waterproof connector for 2 x USB2.0
  • Serial: 1 x M12 waterproof connector for RS232
  • LAN: 1 x waterproof Giga LAN RJ45 connector
  • Indicators: 1 x LED power; 1 x LED storage


Control
  • Buttons: 1 x power; 1 x reset


Accessory
  • 100~240V AC to DC adapter with waterproof connector
  • Power cord
  • External USB cable with waterproof connector
  • External COM cable with waterproof connector
  • External LAN cable with waterproof connector
  • Waterproof caps
  • Manual
  • VESA screws


Power
  • Power rating: 12V DC (M12 type)


Technical specifications
  • Model: R19IE3S-65M1
  • Brand: Winmate
  • Display: 19.0"; 1280 x 1024; 250 nits; 1000:1
  • CPU: Intel Atom® x6413E (up to 3.0 GHz)
  • Memory: 4GB default, up to 16GB optional
  • Storage: 128GB SSD default, up to 2TB optional
  • Enclosure: SUS 316 / AISI 316 stainless steel
  • Ingress protection: IP65
  • Cooling: Fanless
  • I/O highlights: M12 waterproof USB and serial, waterproof Giga LAN RJ45
  • Operating temp / humidity: 0°C to 45°C; 10% to 90% RH non-condensing
  • Certifications: CE, FCC
  • Power: 12V DC (M12)
