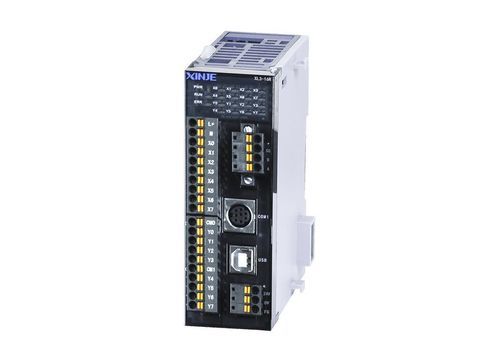

Card format PLC XL3 series

with expandable I/O cardpulse outputfor fieldbus

Overview
Card-style programmable controller designed for industrial machine control. Integrates general data processing with dedicated functions such as high-speed pulse output, high-speed counting, pulse width modulation, frequency measurement and precise timing. Supports right and left expansion modules for scalable I/O and feature extension.

Key features

• Program capacity: 256KB
• Instruction speed: 0.02–0.05 µs
• Maximum I/O: 352 points
• I/O control: Sequential control

High-speed input and output

• 2–4 channels 100 kHz pulse outputs
• 3 channels high-speed counting (up to 80 kHz single-phase, up to 50 kHz AB phase)

Communication

• RS232, RS485
• X-NET fieldbus
• USB port for high-speed download (up to 12 Mbps)

Technical specifications

• Series: XL3 series standard controller
• Design: Card style
• Program capacity: 256KB
• Basic instruction speed: 0.02–0.05 µs
• Maximum I/O: 352 points
• I/O control: Sequential control
• High-speed pulse outputs: 2–4 channels at 100 kHz
• High-speed counting: 3 channels (max 80 kHz single-phase, max 50 kHz AB phase)
• Functions: Pulse width modulation, frequency measurement, accurate timing
• Expansion: Supports right and left expansion modules
• Communication ports: RS232, RS485, X-NET, USB (high-speed download up to 12 Mbps)
