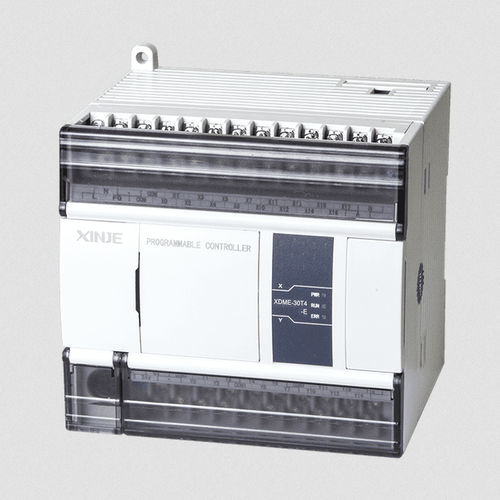

Digital input PLC XDME seriesdigital outputsEthernetfor fieldbus
Add to favorites
Compare this product
Characteristics
- Input/output
- digital outputs, digital input
- Network
- RS485, RS232, for fieldbus, Ethernet, with Ethernet interface
- Other characteristics
- high-speed, sequential, with integrated motion controller
Description
Overview
In addition to all functions of the XDM series, the XDME series provides 2–3× faster processing speed, larger internal resource space, and supports connection of right expansion module, BD board and left expansion ED module.
Basic functions and configurations
Motion control
High-speed input and output
Communication function
Technical specifications
In addition to all functions of the XDM series, the XDME series provides 2–3× faster processing speed, larger internal resource space, and supports connection of right expansion module, BD board and left expansion ED module.
Basic functions and configurations
- Program capacity: 1MB
- Basic instruction execution time: 0.01~0.03 µs
- Maximum I/O points: 572
- I/O sequential control supported
Motion control
- Linear interpolation and arc interpolation
- Follow-up function
High-speed input and output
- 4–10 channels 100 kHz pulse outputs
- 4–10 channels high-speed counting (single-phase up to 80 kHz, AB-phase up to 50 kHz)
Communication function
- RS232, RS485, RJ45 ports
- Ethernet communication
- X-NET fieldbus
Technical specifications
- Program capacity: 1MB
- Basic instruction time: 0.01~0.03 µs
- Maximum I/O points: 572
- I/O sequential control supported
- Motion control: linear interpolation, arc interpolation, follow-up
- High-speed pulse outputs: 4–10 channels at 100 kHz
- High-speed counting: 4–10 channels (single-phase up to 80 kHz, AB-phase up to 50 kHz)
- Communication ports: RS232, RS485, RJ45; supports Ethernet and X-NET fieldbus
