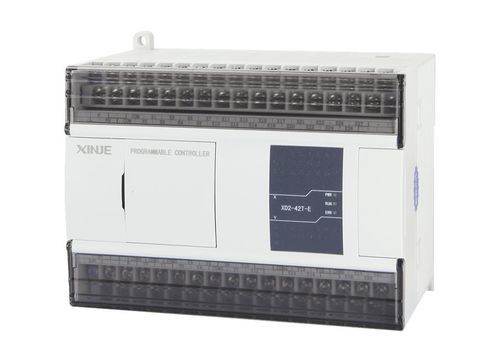

Compact PLC XD2 series

with integrated I/Owith expandable I/O cardpulse output

Product overview
The XD2 series economy-type programmable logic controller offers a compact set of functions for standard automation tasks. Beyond basic data processing it provides pulse outputs, high-speed counting, PWM, and frequency measurement. The controller supports left-side expansion modules ED and BD (note: 16-point extension modules are not supported) and does not support right-side expansion modules, covering typical basic application needs.

Key features

• Basic functions and configurations: Program capacity 256KB; Basic instruction execution time 0.02–0.05 µs; Maximum I/O 60 points; I/O sequential control.
• High-speed input and output: 2 channels 100 kHz pulse outputs; 3-channel high-speed counting (up to 80 kHz single-phase, up to 50 kHz AB phase).
• Communication: RS232, RS485, X-NET fieldbus support.

Technical specifications

• Program capacity: 256KB
• Basic instruction execution time: 0.02–0.05 µs
• Maximum I/O: 60 points
• I/O sequential control
• Pulse outputs: 2 channels at 100 kHz
• High-speed counting: 3 channels (max 80 kHz single-phase, max 50 kHz AB phase)
• Communication interfaces: RS232, RS485, X-NET fieldbus
• Expansion: Supports left expansion ED and BD (16-point modules not supported); no right expansion module support
