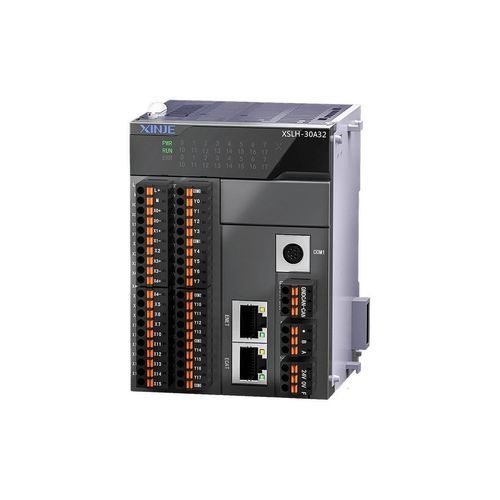

Card format PLC XSLH series

compactwith expandable I/O cardEthernet

Product overview
Support PLCopen programming specifications, can reference many standard functional libraries, and develop proprietary functional blocks and instruction libraries. Support EtherCAT motion control, EtherCAT remote IO, and Ethernet communication. It has 32 channels electronic cam and online download function.

Key features

• Card style design with high-performance core
• Support PLCopen programming specifications and extensive functional libraries
• 32-channel electronic cam and online download capability
• Supports EtherCAT motion control and EtherCAT remote IO
• Ethernet communication support

Scalability and expansion

• Local scalability: can expand up to 16 right expansion modules
• Supports multiple expansion types including I/O, analog, temperature control, etc., to meet multi-dimensional control needs

Platform and programming support

• Supports CODESYS platform
• Powerful PLC software programming tool
• Supports IEC 61131-3 standard
• Rich industry libraries and ability to develop custom libraries
• Provides HMI device data interface for third-party client and control system communication
• Supports OPC UA for cross-platform data transmission and Industry 4.0 scenarios

Communication functions

• Stable CANopen communication: reliable physical and data link layers, compatible and interoperable (suitable for automotive and AGV industries)
• Ethernet communication: standard RJ45 port for faster communication
• Supports multiple network protocols: Modbus-TCP, TCP/IP, UDP, OPC UA, Ethernet/IP and Tag communication
• Flexible network topology: supports linear and star wiring

EtherCAT control capabilities

• Supports up to 32 EtherCAT bus nodes, interoperable with various EtherCAT protocol devices
• Supports multi-line, arc and spiral interpolation functions for multi-axis interpolation platforms
• Electronic cam system to replace mechanical cams for higher accuracy and flexibility (used in capping machines, pillow packaging machines, blow molding machines, etc.)

Related products

• XSA series industrial intelligent controller
• XSDH series small controller
• XSF5 series blade controller

Technical specifications

• Series: XSLH series slim controller
• Programming standards: PLCopen, IEC 61131-3 (via CODESYS)
• Motion control: EtherCAT motion control supported
• EtherCAT nodes: up to 32 bus nodes supported
• Electronic cam: 32 channels electronic cam supported
• Expansion: up to 16 right expansion modules (I/O, analog, temperature control, etc.)
• Communication: EtherCAT, Ethernet (RJ45), CANopen, Modbus-TCP, TCP/IP, UDP, OPC UA, Ethernet/IP, Tag communication
• HMI interface: provides HMI device data interface for third-party communication
• Interpolation: multi-line, arc and spiral interpolation functions
• Typical applications: capping machines, pillow packaging machines, blow molding machines
