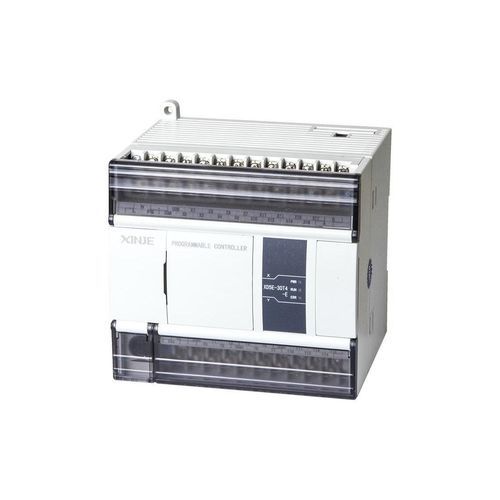

PLC with expandable I/O card XD5E series

pulse outputnetworkedEthernet

Overview
The XD5E series is an enhanced Ethernet programmable controller. It supports faster processing speed (approximately 2–3 times that of the XDM series), larger internal resources, RS232/RS485 serial ports and Ethernet communication. SD card function is not supported. The controller accepts right expansion modules, BD board and left expansion ED modules for system extension.

Key features and configurations

• Program capacity: 1 MB
• Basic instruction execution time: 0.01–0.03 μs
• Maximum I/O points: 572
• I/O sequential control

High-speed inputs and outputs

• 2–10 channels 100 kHz pulse outputs
• 3–10 channels high-speed counting (single-phase up to 80 kHz; AB phase up to 50 kHz)

Communication interfaces

• RS232 serial port
• RS485 serial port
• RJ45 connector
• Ethernet communication
• X-NET fieldbus support

Expansion and compatibility

• Higher processing speed and larger internal resources compared with XDM series
• Supports serial and Ethernet communications for diverse connectivity scenarios
• Compatible with right expansion modules, BD board and left expansion ED modules for system expansion

Technical specifications

• Series: XD5E
• Program memory: 1 MB
• Instruction speed: 0.01–0.03 μs
• Maximum I/O points: 572
• PWM/pulse output channels: 2–10 channels at 100 kHz
• High-speed counting: 3–10 channels (single-phase up to 80 kHz; AB phase up to 50 kHz)
• Supported serial interfaces: RS232, RS485
• Ethernet: RJ45 supported
• Fieldbus: X-NET support
• Expansion: supports right expansion modules, BD board and left expansion ED modules
