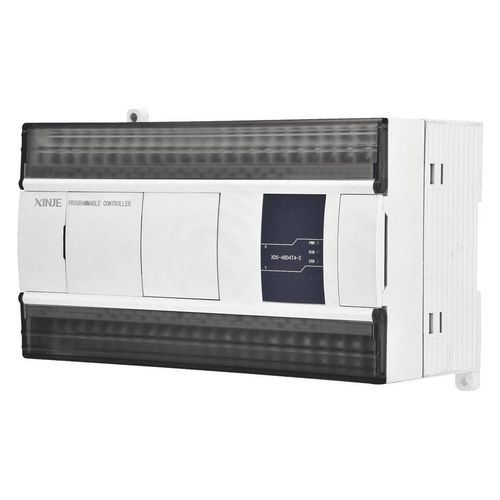

Pulse output PLC XD5-xDnTM seriesfor fieldbusRS485RS232
Add to favorites
Compare this product
Characteristics
- Input/output
- pulse output
- Network
- RS485, RS232, for fieldbus
- Other characteristics
- high-speed, multi-channel
- Applications
- for machinery
Description
Overview
XD5-xDnTM high-speed differential PLC is designed for fast servo motor response. It requires no conversion circuit, simplifying wiring, and is equipped with the complete set of enhanced PLC functions useful for motion and positioning applications.
Product Features
Basic functions and configurations
High speed input and output
Communication function
Technical specifications
XD5-xDnTM high-speed differential PLC is designed for fast servo motor response. It requires no conversion circuit, simplifying wiring, and is equipped with the complete set of enhanced PLC functions useful for motion and positioning applications.
Product Features
Basic functions and configurations
- Program capacity: 512KB
- Basic instruction speed: 0.02–0.05 µs
- Maximum I/O: 560 points
- I/O sequential control supported
High speed input and output
- 4 CH 920 kHz differential pulse outputs
- 4 CH 1 MHz differential high-speed counting
Communication function
- RS232
- RS485
- USB port high-speed download (max 12 Mbps)
- X-NET fieldbus
Technical specifications
- Series name: XD5-xDnTM series differential controller
- Designed for fast servo motor response without conversion circuit
- Program memory: 512KB
- Instruction execution time: 0.02–0.05 µs
- Max I/O points: 560
- I/O sequential control supported
- High-speed outputs: 4 channels 920 kHz differential pulse
- High-speed counting: 4 channels 1 MHz differential counting
- Communication: RS232, RS485, USB (up to 12 Mbps), X-NET fieldbus
