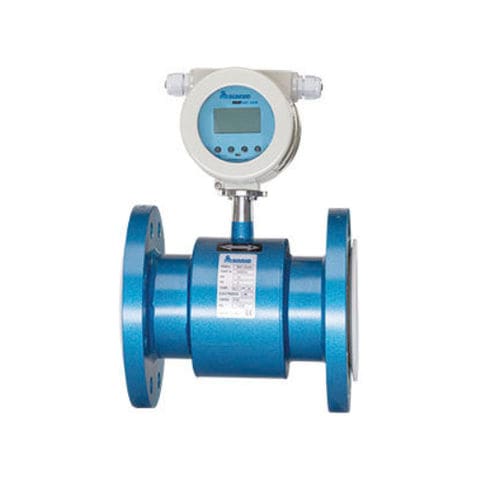

Electromagnetic flow meter MUT2200EL

volumefor waterfor wastewater

Overview
The MUT2300 with MC608 is an AC mains-powered electromagnetic flow meter designed for district metering areas (DMA), water abstraction, custody transfer measurement of potable water (OIML R49), irrigation and industrial applications. It is available in compact and remote-mounted configurations and provides a wide measuring range with stable performance at very low flows. The optimized flow profile permits installation without straight inlet or outlet runs, including behind bends, valves or reducers, while maintaining negligible pressure loss. The design supports buried installation and operation in flooded conditions. On-site verification is possible without interrupting flow using the Field Verificator tool.

Key Features

• No moving parts
• Negligible pressure drop
• Stable accuracy over long periods
• Maintenance-free operation
• Robust construction with high chemical resistance
• Wide measurement range
• Suitable for compact and remote-mounted setups

Typical Applications

• District metering of potable water (DMA)
• Municipal water distribution and abstraction
• Custody transfer and fiscal measurement (OIML R49)
• Irrigation systems
• Industrial process liquids, slurries and concretes
• Industrial wastewater monitoring
• Leak detection and pressure management systems
• Booster pump and lift stations

Options & Additional Capabilities

• Optional pressure and temperature sensors
• Optional integrated GSM/GPRS modem for remote communications and data logging
• Optional 12–24 VDC power supply
• Field Verificator for on-site verification without interrupting flow
• Available in both compact and remote-mounted configurations

Technical specifications

• Model: MUT2300-MC608
• Series: EFM
• Power: AC mains (optional 12–24 VDC)
• Measurement principle: Electromagnetic flow measurement, Zero D narrow-bore
• Measuring range: Wide dynamic range, stable at very low flows
• Accuracy/Use: Suitable for custody transfer of potable water where applicable (OIML R49)
• Installation: Compact or remote-mounted; optimized flow profile allows mounting without straight inlet/outlet runs
• Construction: No moving parts; high chemical resistance; negligible pressure loss
• Environment: Suitable for buried installation and flooded conditions
• Communications: Optional integrated GSM/GPRS modem for remote monitoring and data logging
• Verification & Maintenance: Maintenance-free design; on-site verification supported by Field Verificator without interrupting flow
