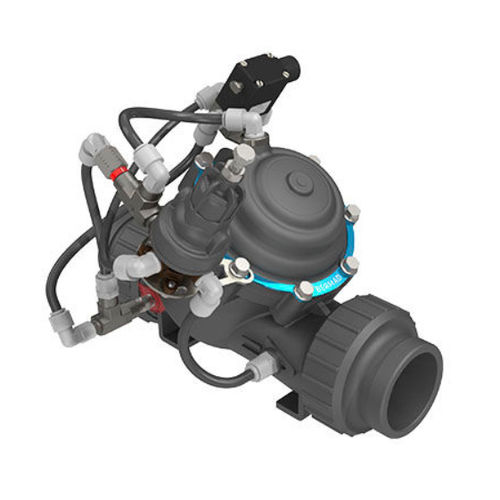

Water pressure relief valve 1030-55
stainless steeldiaphragmplug

water pressure relief valve
water pressure relief valve
Add to favorites
Compare this product


Characteristics

Fluid
for water
Body material
stainless steel
Other characteristics
diaphragm, plug, standard, solenoid-driven, flange, in-line, stainless steel
Controlled pressure

16 bar
(232.1 psi)

DN

Max.: 150 mm
(5.906 in)

Min.: 40 mm
(1.575 in)

Pressure

0.7 bar
(10.2 psi)

Description

Solenoid controlled valve that can be set to close drip tight or modulate as pressure relief or sustaining in response to an electric signal. When modulating the valve sustains minimum pre-set, upstream pressure. If installed as a “branched from the line” it relieves excessive line pressure when above maximum pre-set. The BERMAD 1000 is at the leading edge of control valve design, providing a valve that is free of the typical limitations associated with standard control valves. A unitized flexible diaphragm & guided plug provide a significantly ‘look through’ passage resulting in accurate & stable regulation and high flow capacity. The 1000 unique composite structure allows fast & simple maintenance by easy replacing of lightweight diaphragm assembly. It has a wide range of end connection types and sizes, including articulated flange connections isolating the valve from pipeline bending & pressure stresses. Easy set-up Super light weight Line pressure driven – no external driving power needed Easy pressure setting – in site or pre-ordered Adaptable on-site to a wide range of end connection Simple and durable design Excellent cavitation resistance Highly durable construction & material – No rust Unitized actuator unit – open, replace, close In-line serviceable – no need to remove from line All the benefits of a diaphragm actuated control valve Wide flow range Low flow stability Drip tight sealing TYPICAL PRODUCT APPLICATIONS Prioritizing upstream consumes over downstream high demand Sustaining sufficient pressure at upstream in case of pressure drop
