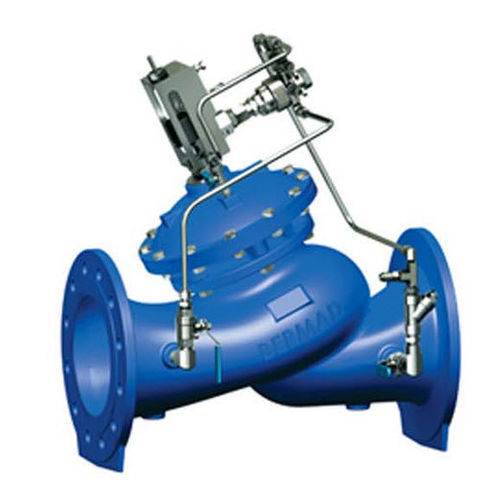

Plug valve WW-7PM
hydraulically-operatedpressure-reducingfor water

plug valve
plug valve
Add to favorites
Compare this product


Characteristics

Type
plug
Operation
hydraulically-operated
Function
pressure-reducing
Media
for water
Body
Y
Associated function
reducing
Other characteristics
actuated
DN

Max.: 600 mm
(23.622 in)

Min.: 40 mm
(1.575 in)

Pressure

Max.: 27 bar
(391.6 psi)

Min.: 0.5 bar
(7.3 psi)

Temperature

Max.: 60 °C
(140 °F)

Min.: 1 °C
(34 °F)

Description

The model 7PM Flow Compensated Pressure Reducing Valve is a hydraulically operated, diaphragm actuated control valve that automatically and continuously optimizes downstream pressure, correlating valve setting with demand. Product features & benefits •Self contained hydro-mechanical oDoes not rely on electrical power supply oDoes not require additional pipeline accessories •Universal fitting oApplicable to all sizes oEasily retro-fitted oLow maintenance and installation costs •Simple design oDoes not require specialist commissioning oFits all “sites” •Double chamber design oModerated valve reaction oProtected diaphragm •V-Port throttling plug oVery stable at low flow oIncreased valve travel •Obstacle free, full bore – Free flow pass •In-line serviceable – Easy maintenance
