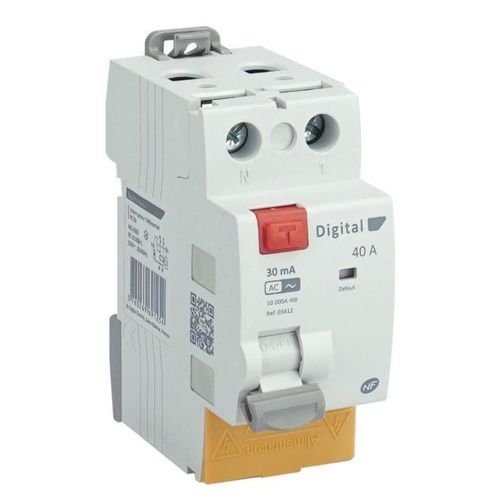

Differential residual current circuit breaker 03416

earth-leakageACbipolar

Description
The residual-current circuit breaker protects personnel against direct contact and earth leakage currents. The French standard NF C 15-100 defines the required number and types of RCDs in residential, commercial and industrial installations. The device is offered in ratings from 16 A to 100 A, sensitivities of 30 mA and 300 mA, and in four types (AC, A, F and B).

General specifications

• Function : Residual protection
• Rated operating voltage (Ue) : 240 Vac
• Number of poles : 1P+N
• Rated current : 80 A
• Type : AC
• Residual sensitivity : 30 mA
• Standard : EN 61008-1
• Weight : 0.400 kg

Accessories

• Kit Alim ID4/12 Dpn 63A
• Cuivre busbar tetra 63A 56 modules
• Cuivre busbar tetra 63A 12 modules

Characteristics / technical specifications

• Product reference displayed on the page: REF. 03416
• Available range: currents from 16 to 100 A
• Sensitivity versions: 30 mA and 300 mA
• Available types: AC, A, F, B
• Nominal operating voltage: 240 Vac
• Number of poles: 1P+N (bipolar)
• Rated device current: 80 A
• Residual sensitivity: 30 mA
• Standards compliance: EN 61008-1
• Mass: 0.400 kg
