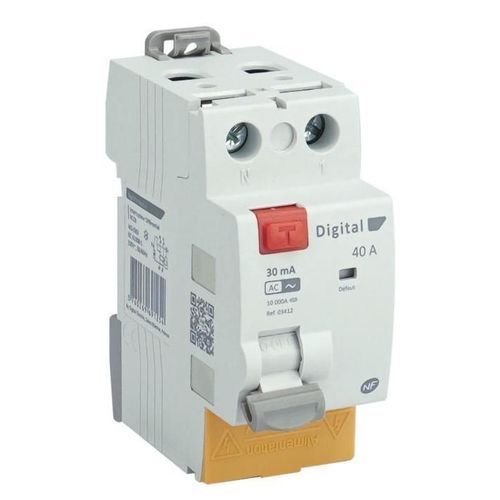

Differential residual current circuit breaker 03492

ACsingle-pole

Overview : The residual current device protects personnel against direct contact. The NF C15-100 standard defines the required number and type of RCDs for residential, commercial and industrial installations. RCDs are available from 16 to 100 A, in 30 mA and 300 mA ratings and in four types (AC, A, F and B).

General information

• Reference : REF. 03492

Available documents

• Datasheet
• Catalogue
• Certificates (CE, SEMKO)

Compatible accessories

• Kit Alim ID4/12 Dpn 63A
• Peigne Cuivre Tetra 63A 56 Modules
• Peigne Cuivre Tetra 63A 12 Modules

Characteristics / technical specifications

• Function : Residual protection
• Operating voltage (Ue) : 240 Vac
• Number of poles : 1P+N
• Rated current : 16 A
• Type : AC
• Residual sensitivity : 10 mA
• Standard : EN 61008-1
• Weight : 0.400 Kg
