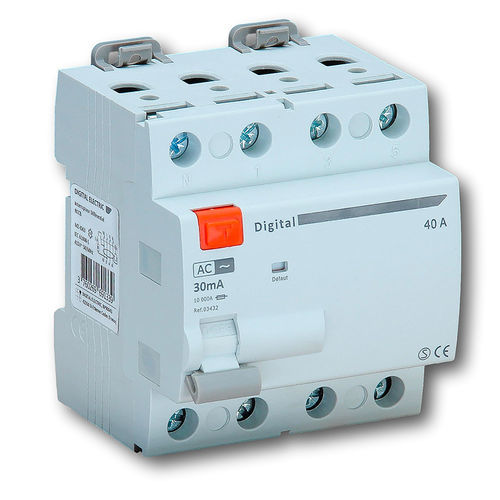

Differential residual current circuit breaker 03468

ACsingle-phaseresidual current

Overview
The residual current device provides protection against direct contact by disconnecting the supply when leakage current is detected. Available in intensities from 16 to 100 A, sensitivities of 30 mA and 300 mA, and detection types AC, A, F and B, compliant with EN 61008-1.

General information

• Product reference displayed on the page: REF. 03468
• Range available: intensities from 16 to 100 A
• Sensitivities available: 30 mA and 300 mA
• Types available: AC, A, F and B

Main characteristics

• Function: Residual protection
• Rated operational voltage (Ue): 240 Vac
• Number of poles: 1P+N
• Rated current: 100 A
• Detection type: AC
• Residual sensitivity: 300 mA
• Standard: EN 61008-1
• Weight: 0.790 kg

Available documents

• Product datasheet (technical document provided on the page)

Technical specifications

• Reference: 03468
• Function: Residual protection
• Rated operational voltage (Ue): 240 Vac
• Number of poles: 1P+N
• Rated current: 100 A
• Sensitivity: 300 mA
• Detection type: AC
• Compliance: EN 61008-1
• Weight: 0.790 kg
