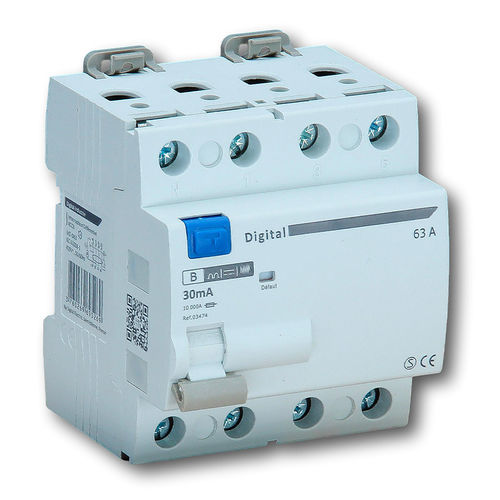

Differential residual current circuit breaker 03474

residual currentfor photovoltaic applicationsdistribution

Overview
The residual current circuit breaker provides protection against direct contact by detecting earth leakage currents. It is intended for residential, commercial and industrial distribution and follows applicable installation rules (e.g. NFC15-100 in France). Available from 16 A to 100 A, with sensitivities of 30 mA and 300 mA, and in types AC, A, F and B; Type B detects DC and complex residual currents and is recommended for equipment with power electronics.

Applications

• Residential and commercial distribution boards
• Industrial installations with variable-speed drives and frequency converters
• Photovoltaic inverters and electric vehicle charging stations

Accessories

• Kit Alim ID4/12 Dpn 63A
• Peigne Cuivre Tetra 63A 56 Modules
• Peigne Cuivre Tetra 63A 12 Modules

Technical specifications

• Reference: 03474
• Function: Residual current protection
• Rated operational voltage (Ue): 415 Vac
• Number of poles: 3P+N
• Rated current: 63 A
• Type: B
• Residual sensitivity: 30 mA
• Standard: EN 61008-1
• Weight: 0.790 Kg
