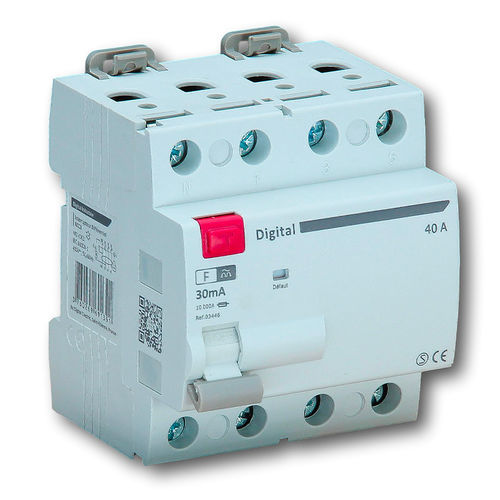

Differential residual current circuit breaker 03478ACresidual current4-pole
Add to favorites
Compare this product
Characteristics
- Type
- differential
- Electrical characteristics
- residual current, AC
- Number of poles
- 4-pole
- Other characteristics
- type A, type B, type F
- Rating
Min.: 16 A
Max.: 100 A
Description
Description
The residual current device protects people against direct contact by detecting and interrupting leakage currents to earth. The NFC15-100 standard defines the required number and types of residual current devices for residential, commercial and industrial installations. This product range covers rated currents from 16 to 100 A and is available in 30 mA and 300 mA sensitivities, with tripping characteristics AC, A, F and B.
Reference
REF. 03478
Price
428,49 € HT
Certifications
Accessories
Characteristics / Technical specifications
The residual current device protects people against direct contact by detecting and interrupting leakage currents to earth. The NFC15-100 standard defines the required number and types of residual current devices for residential, commercial and industrial installations. This product range covers rated currents from 16 to 100 A and is available in 30 mA and 300 mA sensitivities, with tripping characteristics AC, A, F and B.
Reference
REF. 03478
Price
428,49 € HT
Certifications
- CE
- SEMKO
Accessories
- Kit Alim ID4/12 Dpn 63A
- Peigne Cuivre Tetra 63A 56 Modules
- Peigne Cuivre Tetra 63A 12 Modules
Characteristics / Technical specifications
- Type: B
- Number of poles: 4
- Rated current: 63 A
- Residual sensitivity: 300 mA
- Weight: 0.790 Kg
- Available ranges: 16 to 100 A
- Available versions: 30 mA and 300 mA
- Available types: AC, A, F and B
- Compliance: NFC15-100 standard (installation rules for residential / commercial / industrial)
