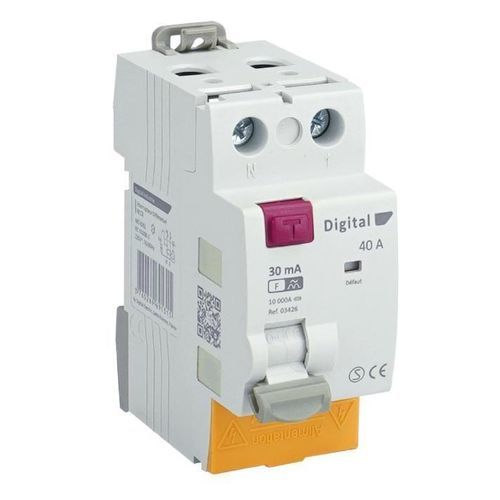

Differential residual current circuit breaker 03425digitalDCAC
Add to favorites
Compare this product
Characteristics
- Type
- differential, digital
- Electrical characteristics
- residual current, AC, DC
- Operating mode
- digital, electronic
- Number of poles
- 2-pole
- Other characteristics
- type A, type F
- Rating
25 A
Description
Description
The DIGITAL ELECTRIC range of residual current devices (RCDs) protects personnel against leakage currents. Available sensitivities: 10 mA, 30 mA and 300 mA, with several tripping characteristics to suit different applications.
Tripping characteristics
Additional information
Product reference shown on the page: REF. 03425
Characteristics / technical specifications
The DIGITAL ELECTRIC range of residual current devices (RCDs) protects personnel against leakage currents. Available sensitivities: 10 mA, 30 mA and 300 mA, with several tripping characteristics to suit different applications.
Tripping characteristics
- Type AC: General-purpose use
- Type A: Detects alternating and pulsating DC residuals produced by electronic equipment (washing machines, cooktops, etc.)
- Type F: Detects alternating and pulsating DC residuals and provides increased immunity for equipment sensitive to micro-interruptions (IT equipment, refrigerators, etc.)
- Type B: Detects alternating and pulsating DC residuals (Type A) and also smooth DC residuals (EV charging stations, photovoltaic storage, etc.)
Additional information
Product reference shown on the page: REF. 03425
Characteristics / technical specifications
- Rated current: 2x25 A
- Residual sensitivity: 30 mA
- Type: F
- Weight: 0.400 kg
- Listed price: €69.62 excl. VAT
