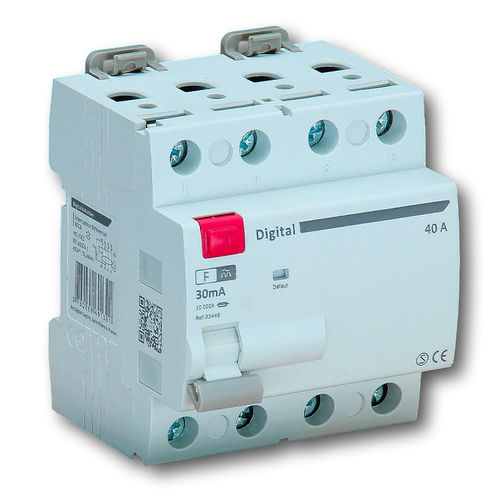

Differential residual current circuit breaker 03446

currentACvoltage

Reference : REF. 03446

Description : The residual current circuit-breaker provides protection against direct contact by detecting earth leakage currents. The NF C15-100 standard specifies the required number and type of RCDs for residential, commercial and industrial installations. Available in rated currents from 16 to 100 A, in sensitivities of 30 mA and 300 mA, and in four characteristic types (AC, A, F and B).

Main features :

• Function : Residual/earth-fault protection
• Rated operational voltage (Ue) : 415 Vac
• Poles : 3P+N
• Rated current : 40 A
• Type : F
• Residual sensitivity : 30 mA
• Standard : EN 61008-1
• Weight : 0.790 kg

Compatible accessories :

• Power kit ID4/12 Dpn 63A
• Copper busbar Tetra 63A 56 Modules
• Copper busbar Tetra 63A 12 Modules

Technical specifications :

• Product reference: 03446
• Differential type: Type F
• Rated current: 40 A
• Number of poles: 4 (3P+N)
• Sensitivity: 30 mA
• Rated operational voltage: 415 Vac
• Conformity standard: EN 61008-1
• Function: Residual protection against direct contact
• Weight: 0.790 kg
