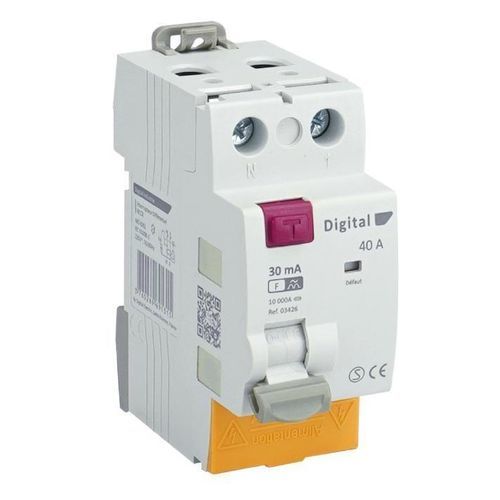

Differential residual current circuit breaker 03426
single-phaseresidual currentdistribution

Differential residual current circuit breaker - 03426 - DIGITAL ELECTRIC - single-phase / residual current / distribution
Differential residual current circuit breaker - 03426 - DIGITAL ELECTRIC - single-phase / residual current / distribution
Add to favorites
Compare this product
Go to the DIGITAL ELECTRIC website for more information

Characteristics

Type
differential
Electrical characteristics
residual current, single-phase
Applications
distribution
Number of poles
2-pole
Other characteristics
type F
VAC

240 V

Rating

40 A

Description

Presentation
The residual current device (RCD) protects people from direct contact by detecting earth leakage currents. The French NFC 15-100 standard defines the number and type of RCDs in residential, commercial and industrial installations. RCDs are available from 16 A to 100 A, with sensitivities of 30 mA and 300 mA, and in four types: AC, A, F and B.

Reference
REF. 03426

List price
72,90 € excl. VAT

Available documents
  • Technical datasheet
  • Catalogue

Specifications / technical characteristics
  • Function : Residual current protection
  • Rated operating voltage (Ue) : 240 Vac
  • Number of poles : 1P+N
  • Rated current : 40 A
  • Type : F
  • Residual sensitivity : 30 mA
  • Standard : EN 61008-1
  • Weight : 0,400 Kg
