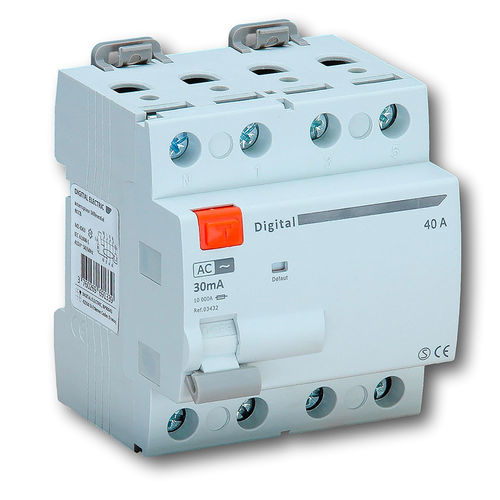

Differential residual current circuit breaker 03462

ACresidual current4-pole

Description
The residual current device (RCD) protects personnel against direct contact by detecting imbalances between phase and neutral and disconnecting the circuit. The NF C15-100 standard defines the required number and types of RCDs for residential, commercial and industrial installations. This model is available in ratings from 16 A to 100 A and in 30 mA and 300 mA sensitivities across four differential types (AC, A, F and B). It is designed for distribution boards requiring a four-pole protective device in a 4x40A/300mA configuration.

Reference
REF. 03462

Compatible accessories

• ID4/12 power supply kit Dpn 63A
• Copper comb busbar Tetra 63A — 56 modules
• Copper comb busbar Tetra 63A — 12 modules

Available documents

• Datasheet (product document)
• Catalogue

Technical characteristics / specifications

• Type: Four-pole residual current device (RCD)
• Configuration: 4x40A / 300mA
• Differential type: Type AC
• Available sensitivities: 30 mA and 300 mA
• Available ratings: 16 A to 100 A
• Weight: 0.790 kg
• Price (excl. VAT): €105.32
