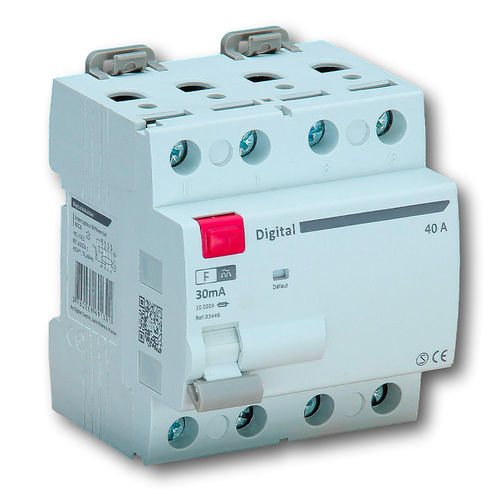

Differential residual current circuit breaker 03482

currentACresidual current

Presentation
The residual-current device (RCD) protects personnel against direct contact. Standard NFC15-100 defines the required number and type of RCDs for residential, commercial and industrial installations. Available in ratings from 16 A to 100 A, in 30 mA and 300 mA sensitivities and in four types (AC, A, F and B).

Reference
REF. 03482

Price
€128.65 excl. VAT

Available documents

• Datasheet (PDF)

Characteristics / technical specifications

• Type: F
• Configuration: 4 poles (4x)
• Rated current: 40 A (4x40 A)
• Residual sensitivity: 300 mA
• Use: protection of persons against direct contact
• Standard compliance: NFC15-100 (number and type according to residential, commercial and industrial installations)
• Available range: 16 to 100 A
• Available versions: 30 mA and 300 mA
• Available types: AC, A, F and B
• Weight: 0.790 kg
