HDR camera STURDeCAM88_CUOAGX

industrialfor the automotive industryfor vehicles

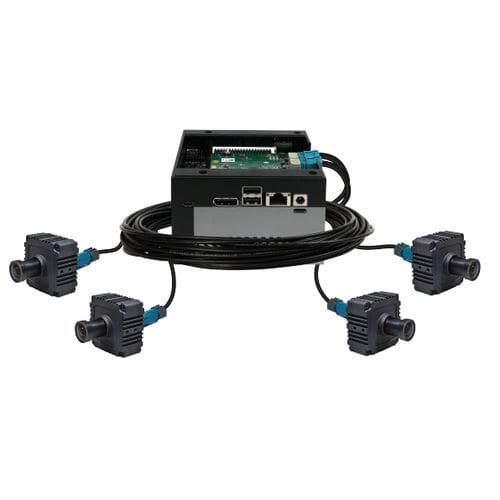

STURDeCAM88_CUOAGX is a rugged, high-performance 4K HDR front view camera from e-con Systems®, designed to meet the demanding requirements of modern embedded vision applications. Equipped with an 8.3MP (1/1.73") automotive-grade OmniVision® OX08B40 image sensor, the camera supports up to 140 dB HDR using rolling shutter readout and features LED Flicker Mitigation (LFM) for stable and flicker-free imaging in dynamic lighting conditions. STURDeCAM88_CUOAGX_CXLC comes with an onboard Image Signal Processor (ISP) and uses Analog Devices' GMSL2 SerDes technology, enabling high-speed data, power, and control transmission over a single rugged coaxial cable with FAKRA connector. This simplifies integration and improves durability in industrial and automotive setups. Designed for use with the NVIDIA® Jetson AGX Orin™ development kit via a dedicated deserializer board, the camera supports flexible deployment with coaxial cable lengths up to 15 meters, making it ideal for Delivery Robots, Autonomous Vehicles, Agricultural Vehicles, Mining Vehicles, All-Terrain Vehicles, Intelligent Transport Systems (ITS) and Biometrics. With its IP67-rated enclosure, STURDeCAM88_CUOAGX ensures dust-tight and high-pressure water resistance, offering unmatched reliability for both indoor and outdoor applications. Key features: Frame Rate : Streams 8MP @ 30 fps & Full HD @ 30 fps Refer  pdfDatasheet for complete frame rate details. Output format: Uncompressed UYVY format High-speed MIPI CSI-2 interface to connect with the CPU Control for individual cameras Lightweight, versatile, and portable design
