Digital camera NileCAM82_CUQRB5

machine visionfor roboticsdetection

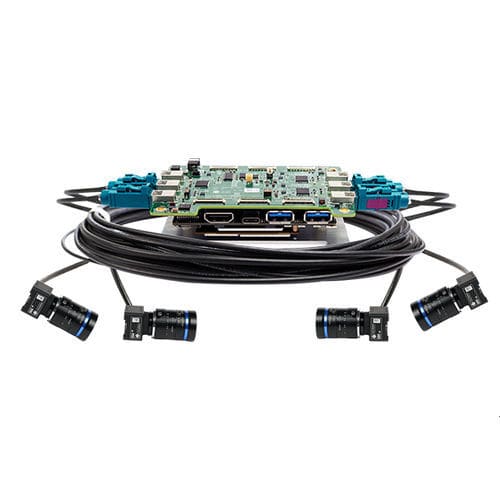

NileCAM82_CUQRB5 is a multi-camera solution for the Qualcomm® Robotics RB5 kit. This camera kit houses NileCAM82 - an 8MP camera module based on the Sony STARVIS IMX485 sensor which comes with ultra-low light sensitivity. This multi-camera solution has the ability to connect up to 4 cameras. It uses GMSL 2 interface with a 15m cable length to connect to the host processor and streams high-resolution uncompressed video data with low latency. Qualcomm® Cameras | GMSL Cameras Highlights: Houses NileCAM82 - 8MP Camera Module Plugs into Qualcomm® Robotics RB5 Development Kit (upto 4 cameras) Ultra low light sensitivity Gigabit Multimedia Serial Link 2 (GMSL2) interface with FAKRA connector Shielded coaxial cable to transmit power and data up to 15m Key features: Frame Rate: Streams 4K @ 30fps Refer pdfDatasheet for complete frame rate details. Uses Qualcomm QRB5165 ISP for image processing CS-mount lens holder for flexibility to choose a lens as per application requirements Lightweight, versatile, and portable design Interface: Interface: GMSL2 Connector: FAKRA connector Cable Length: 15m
