Digital camera NileCAM25_CUQRB5

machine visionfor roboticsdetection

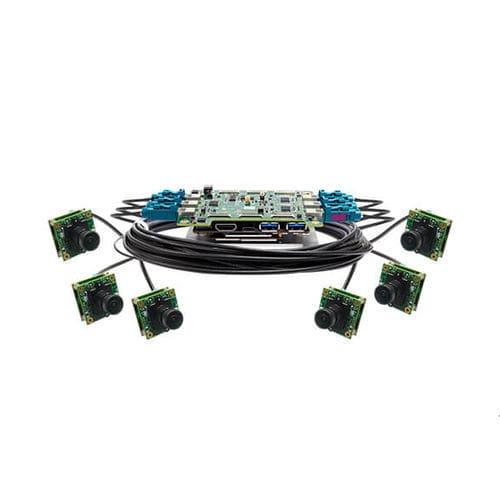

NileCAM25_CUQRB5 is a Full HD global shutter GMSL2 camera for Qualcomm® Robotics RB5 Kit. NileCAM25_CUQRB5 is a multi-camera solution with the ability to connect up to 6 cameras to the Qualcomm QRB5165 processor. It is a global shutter camera based on Onsemi AR0234 that captures fast-moving objects at a high frame rate to minimize frame-to-frame distortion to produce crystal clear images with greater scene details. Highlights: Houses NileCAM25 - AR0234 GMSL2 Camera Module Global Shutter Plugs into Qualcomm® Robotics RB5 Development Kit (upto 6 cameras) Gigabit Multimedia Serial Link 2 (GMSL2) interface with FAKRA connector Shielded coaxial cable to transmit power and data up to 15m On-board high performance ISP Key features: Frame Rate: Streams Full HD @ 30 fps Refer pdfDatasheet for complete frame rate details. S-mount lens holder for flexibility to choose a lens as per application requirements Lightweight, versatile, and portable design Interface: Interface: GMSL2 Connector: FAKRA connector Cable Length: 15m Sensor features: Sensor: AR0234CS from onsemi® Focus Type: Fixed focus Sensor Resolution: Full HD Chroma: Color Shutter Type: Global Shutter Optical Format: 1/2.6" Output Format: Uncompressed YUV422 Pixel Size: 3μm x 3μm Sensor Active Area: 1920(H) x 1200(V)
