Digital camera NileCAM130M_CUQRB5

machine visionfor roboticsdetection

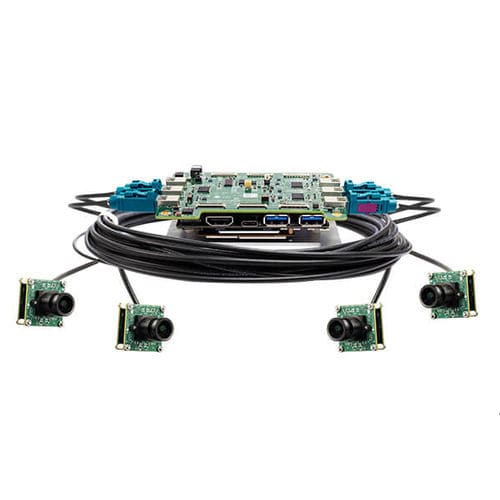

NileCAM130M_CUQRB5 is a 13MP GMSL 2 camera based on a 1/3.2 inch AR1335 CMOS image sensor with advanced 1.1μm pixel BSI technology from onsemi™. This ensures excellent image quality in both visible & near-IR regions. This multi-camera solution connects up to 4 cameras to Qualcomm® Robotics RB5 Development Kit. Also, this 13MP camera has an M12 lens holder, allowing customers to use the lens of their choice. Highlights: Houses NileCAM130M - AR1335 Monochrome sensor from onsemi® Plugs into Qualcomm® Robotics RB5 Development Kit (up to 4 cameras) Gigabit Multimedia Serial Link 2 (GMSL2) interface with FAKRA connector Shielded coaxial cable to transmit power and data up to 15m Global Reset Mode (Global Reset Release GRR) # Excellent image quality in both visible & near-IR regions Key features: Frame Rate: Streams 13MP @ 15fps & 4K @ 30fps Refer pdfDatasheet for complete frame rate details. Uses Qualcomm QRB5165 ISP for image processing High-speed MIPI CSI-2 interface to connect with the CPU S-mount lens holder for flexibility to choose a lens as per application requirements Lightweight, versatile, and portable design Interface: Interface: GMSL2 Connector: FAKRA connector Cable Length: 15m
